Post subject: Amp tech's nightmare
Posted: Sat Aug 11, 2012 3:50 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Not Fender, but you get the idea. Check out what happens when one little radial lead cap is not set to proper angle on a circuit board. See the culprit about midway down the page.

http://www.chambonino.com/work/ampeg/amp4.html


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Amp tech's nightmare
Posted: Sat Aug 11, 2012 3:55 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
¡Pinche......almost as bad as those rat's-nest Peaveys!

(I refuse to work on those chingaleros anymore)

:evil:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Amp tech's nightmare
Posted: Sat Aug 11, 2012 5:50 pm
Offline
Professional Musician
Professional Musician

Joined: Fri Jun 26, 2009 6:53 pm
Posts: 2252
Location: Harvard IL
Whew!!! Daunting is the key word. Can't beleve how clean he got that burnt board. Art

_________________
None of Us are free, if One of Us is chained !


Top
Profile
Post subject: Re: Amp tech's nightmare
Posted: Sat Aug 11, 2012 8:40 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
To try and help prevent such disasters, I have a couple of prints made from that GREAT 400PS site --- taped to my tool box. Just to illustrate what can happen if you don't know what you are doing. Or don't double/triple check your work before flipping the switch. :(

Great 400PS site:

http://www.timeelect.com/400-PS-IDX.htm

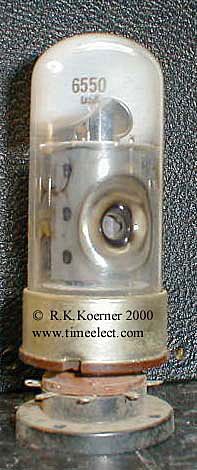

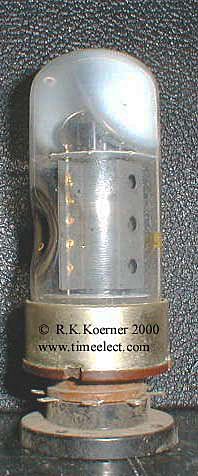

Two HOLY GE 6550A done in.




Top
Profile
Post subject: Re: Amp tech's nightmare
Posted: Sat Aug 11, 2012 8:46 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
BMW2002Ti wrote:
Two HOLY GE 6550A done in.




ARC CITY!

:shock: :shock: :shock:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Amp tech's nightmare
Posted: Sat Aug 11, 2012 9:03 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

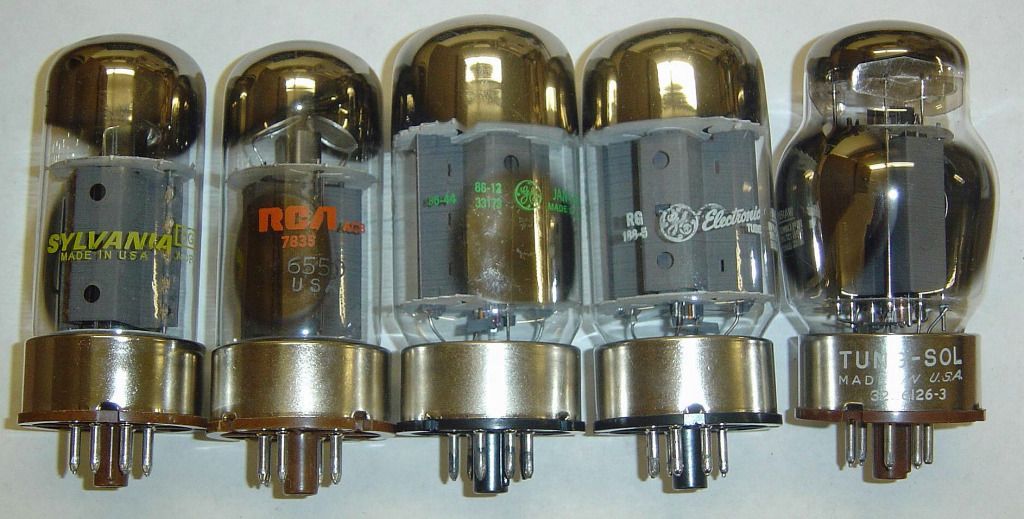

Photo to settle the stomach (from last photo).

Lineup includes two GE made 6550A's in the middle. And the TS 6550 on right. Two on left are the lower rated Sylvanoa made 6550.
