Post subject: well it sound like my 1973 SFTR went out on me
Posted: Mon Jul 09, 2012 10:17 am
Offline
Hobbyist
Hobbyist

Joined: Thu Mar 22, 2012 4:52 pm
Posts: 27
i was playing it yesterday and it sounds like it took a crap on me. i was playing it rather loud, and the volume went way down when it was still cranked up. im about to take it apart and see whats wrong with it. also, what chassis do I have? is it the ab763, or the ac5 whatever it is?


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: well it sound like my 1973 SFTR went out on me
Posted: Mon Jul 09, 2012 10:23 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Check & test your tubes first, before yanking the chassis. Got any photos of the amp (re: wiring). It'll help determine exact circuit.


Top
Profile
Post subject: Re: well it sound like my 1973 SFTR went out on me
Posted: Mon Jul 09, 2012 10:55 am
Offline
Hobbyist
Hobbyist

Joined: Thu Mar 22, 2012 4:52 pm
Posts: 27

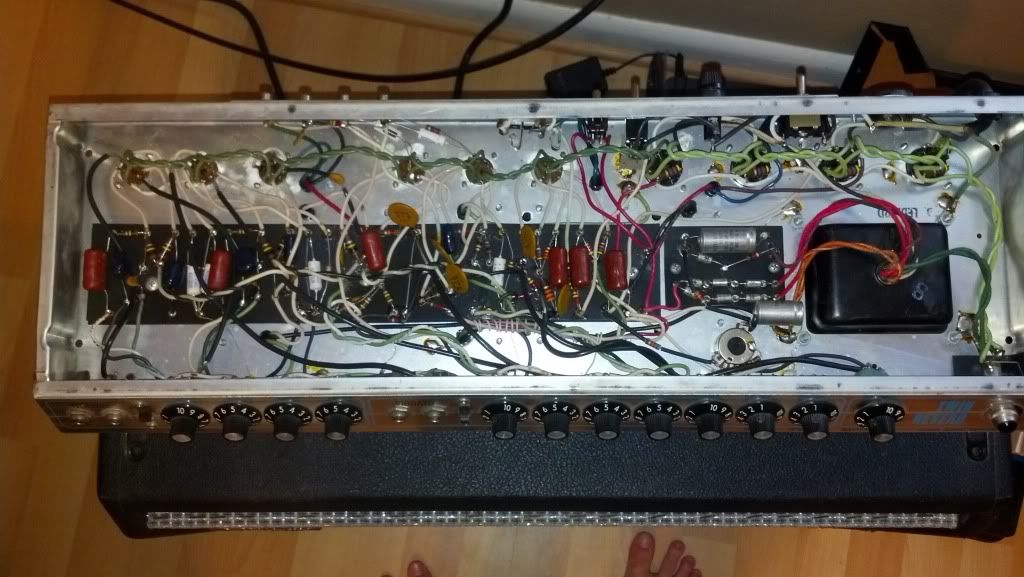

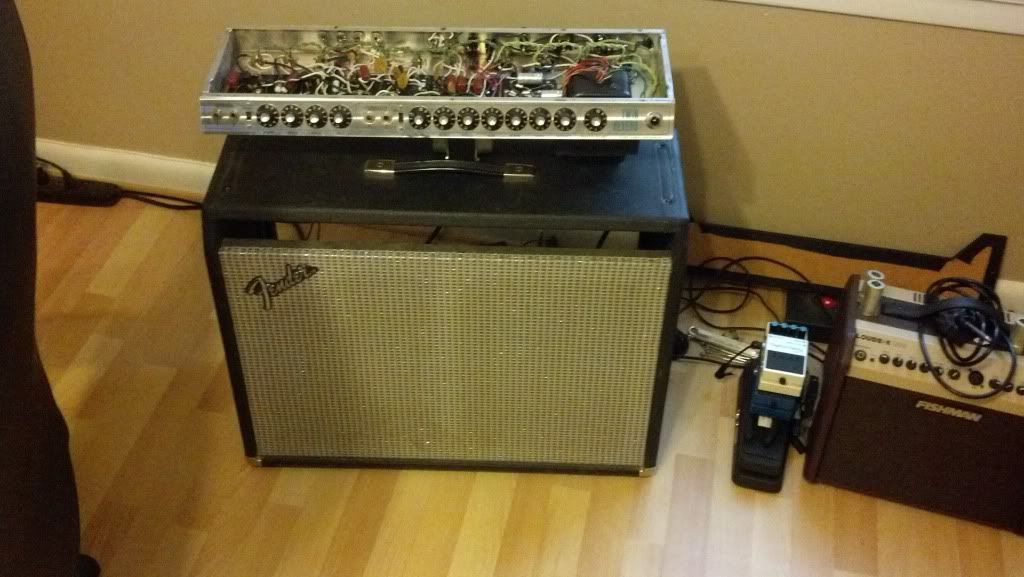

here are the pics that I just took a couple of minutes ago:



i hope this helps.


Top
Profile
Post subject: Re: well it sound like my 1973 SFTR went out on me
Posted: Mon Jul 09, 2012 11:21 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Looks like a AA270 circuit:

http://www.webphix.com/schematic%20heav ... _schem.pdf


Top
Profile
Post subject: Re: well it sound like my 1973 SFTR went out on me
Posted: Mon Jul 09, 2012 11:44 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
More likely it's the 100-watt platform with the master-volume control......

http://web.archive.org/web/200710170523 ... _schem.pdf

HTH

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: well it sound like my 1973 SFTR went out on me
Posted: Mon Jul 09, 2012 12:14 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Arjay, right again. Shoulda counted dials.

Thanks!


Top
Profile
Post subject: Re: well it sound like my 1973 SFTR went out on me
Posted: Mon Jul 09, 2012 1:14 pm
Offline
Hobbyist
Hobbyist

Joined: Thu Mar 22, 2012 4:52 pm
Posts: 27
yes it is the 100 watt with the master volume just to clear things up. I should have said that earlier....


Top
Profile
Post subject: Re: well it sound like my 1973 SFTR went out on me
Posted: Mon Jul 09, 2012 1:16 pm
Offline
Hobbyist
Hobbyist

Joined: Thu Mar 22, 2012 4:52 pm
Posts: 27
retroverbial, the webpage couldnt open for some reason?


Top
Profile
Post subject: Re: well it sound like my 1973 SFTR went out on me
Posted: Mon Jul 09, 2012 1:24 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Fit, not Arjay. But, maybe this will work:

http://www.webphix.com/schematic%20heav ... _schem.pdf


Top
Profile
Post subject: Re: well it sound like my 1973 SFTR went out on me
Posted: Mon Jul 09, 2012 1:42 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
The "Fender Heaven" schematic site has always been somewhat erratic. But Steve (above) has posted a link to the correct drawing for your amp.

Your amp has lost something critical -- I'd start by inspecting the voltages at the power supply.

HTH

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: well it sound like my 1973 SFTR went out on me
Posted: Mon Jul 09, 2012 2:21 pm
Offline
Professional Musician
Professional Musician

Joined: Fri Jun 26, 2009 6:53 pm
Posts: 2252
Location: Harvard IL
Fit, a couple questions: Does the pilot light stay on? Are both channels down?( if so, I'd tend to suspect the phase inverter tube.) Art

_________________
None of Us are free, if One of Us is chained !


Top
Profile
Post subject: Re: well it sound like my 1973 SFTR went out on me
Posted: Tue Jul 10, 2012 8:46 am
Offline
Hobbyist
Hobbyist

Joined: Thu Mar 22, 2012 4:52 pm
Posts: 27
the pilot light does stay on, and both channels are down.


Top
Profile
Post subject: Re: well it sound like my 1973 SFTR went out on me
Posted: Wed Jul 11, 2012 3:00 am
Offline
Professional Musician
Professional Musician

Joined: Fri Jun 26, 2009 6:53 pm
Posts: 2252
Location: Harvard IL
Fit, can you try swapping in another inverter tube(V6)? You could pull (V1) and try that as a substitute for a test, of course the normal channel would be non operative. But your reverb(Vib) channel should be good to go. Art

_________________
None of Us are free, if One of Us is chained !


Top
Profile
Post subject: Re: well it sound like my 1973 SFTR went out on me
Posted: Wed Jul 11, 2012 9:33 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Fit, If all the above advice still doesn't narrow down the problem... you need to whip out the old DVM! And take voltage measurements.

I'd concentrate of B+ voltages to the anodes of each tube. And the Bias Supply voltages. Good start. You can pull the tubes --- just remember the actual volts maybe higher than the nominal ones posted on the schematic (wtih no tube and today's outlet voltages). My bet is you have a bad filter cap (dead--- no conductive) or dropdown resistor in the PS.

http://www.webphix.com/schematic%20heav ... _schem.pdf
