Post subject: 1 meg grid-to-ground resistor on original 6G15 Reverb Unit
Posted: Wed Apr 11, 2012 5:24 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

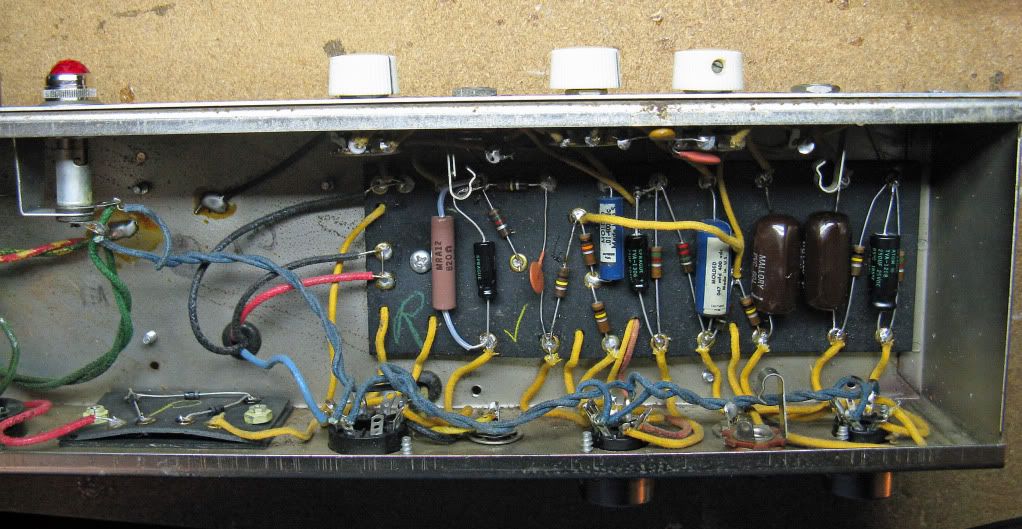

Went back and added the 1-meg ohm, 1/2-watt grid-to-ground resistor to the 12AX7 (7025) output tube of my old Reverb Unit (6G15). You can seen the resistor on lower right side, connecting pin 2 of the 12AX7 to ground. I used the unused strap of the foot pedal jack to ground out the resistor.

No added hum or other issues. Pretty neat location. Out of the way of jacks, tubes, and signal or heater wiring. Good idea for those of you that own these older units. The resistor helps center the idle of the tube and will dump an excess current load, if the tank should short out or draw a high transient current peak (and maybe save a good 12AX7).

http://www.webphix.com/schematic%20heav ... _schem.pdf



Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: 1 meg grid-to-ground resistor on original 6G15 Reverb Un
Posted: Wed Apr 11, 2012 6:02 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Pretty smooth installation, B-Man.

Saves you the grief of having to "puddle" a glob of solder on the chassis to secure a decent ground.

Rawk on!

8)

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 1 meg grid-to-ground resistor on original 6G15 Reverb Un
Posted: Wed Apr 11, 2012 10:19 pm
Offline
Professional Musician
Professional Musician

Joined: Fri Jun 26, 2009 6:53 pm
Posts: 2252
Location: Harvard IL
Very nice Beemer! That's very similar to the way I put the 1meg in the Weber 5G15. And yeah, there is no change in performance. Thanks for the tip! Art

_________________
None of Us are free, if One of Us is chained !


Top
Profile
Post subject: Re: 1 meg grid-to-ground resistor on original 6G15 Reverb Un
Posted: Thu Apr 12, 2012 11:00 am
Offline
Rock Star
Rock Star
User avatar

Joined: Wed Feb 17, 2010 11:38 am
Posts: 4333
Location: Tennessee
Thanks for the pic BMW...we've talked about this before but I haven't done it yet to my '63 reverb,I like the way you hooked into the jack for ground...I porbably wouldn't have thought of that. :)


Top
Profile
Post subject: Re: 1 meg grid-to-ground resistor on original 6G15 Reverb Un
Posted: Tue Apr 24, 2012 12:56 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Wed Feb 17, 2010 11:38 am
Posts: 4333
Location: Tennessee
I'm going to find the right value resistor to do this BMW,within the next few days...I should change the filter caps while i'm working on it...is there anything else you recommend while I'm performing surgery?


Top
Profile
Post subject: Re: 1 meg grid-to-ground resistor on original 6G15 Reverb Un
Posted: Tue Apr 24, 2012 1:05 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Wed Feb 17, 2010 11:38 am
Posts: 4333
Location: Tennessee
btw,where can you find a 3/4 amp fuse???


Top
Profile
Post subject: Re: 1 meg grid-to-ground resistor on original 6G15 Reverb Un
Posted: Tue Apr 24, 2012 2:21 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Look for 750mA (either 125 or 250VAC, either voltage is ok) glass BUSSMAN or Littlefuse:

http://www.nextag.com/750ma-fuse/products-html


Last edited by BMW2002Ti on Tue Apr 24, 2012 3:10 pm, edited 2 times in total.

Top
Profile
Post subject: Re: 1 meg grid-to-ground resistor on original 6G15 Reverb Un
Posted: Tue Apr 24, 2012 2:37 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Rebelsoul,

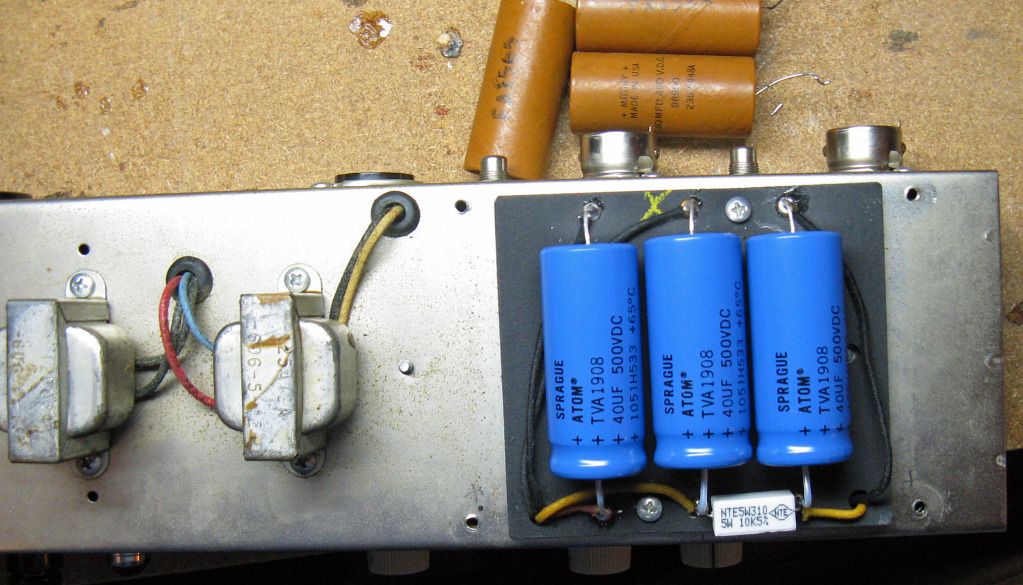

I'd recommend changing the caps under the hood. This is really a single-ended amp, like a Champ. So, those main power/filter caps are very important. Now-a-days, I use the 47mfd/500VDC F&T. But, the Sprague Atom 40mfd/500VDC are fine, too. Also, going to a good WW cathode-tied resistor under the 6K6GT is a good idea. Both tone-wise and for good tube life. Change any bypass cap that looks old, leaky, or dried-out. And resistors way out of spec. Usual amp precautions.
