Post subject: Re: Blackface bassman 1967 AB165
Posted: Fri Jun 08, 2012 4:53 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Jul 17, 2007 3:08 pm
Posts: 2889
It was part of a bigger collection I acquiered, and so i hope to sell off other parts of the collection and keep this for myself.

Now with all of the contreversy over Caps It will take a lot of digging to find replacements for this one.
Not that it needs them right now, its quiet as any I've ever owned.

Again I must say this has been the very best year for Vintage music finds for me, hope your all getting shots at the goodies too !!!!

_________________
Keepn' the Blues Alive

2004 50th Ann. Limited edition AMSE Stratocaster
2017 50's Baja Telecaster BSB

1968 Bandmaster with 2X12 cab C-rex speakers
VHT Special 6 Ultra combo

Visual Sound Route 66
Cmatmods Signa Drive


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Blackface bassman 1967 AB165
Posted: Fri Jun 08, 2012 2:44 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Jul 17, 2007 3:08 pm
Posts: 2889
This one has the original two prong power cord, seems as if one of you guys had a drawing of how to swap out for a three prong grounded and bypass the switch (polarity).

I know I need to do this much and fast before i get zapped.

and should I solder the green ground to the chassis or use a sheet metal screw and a loop end on the wire ???

_________________
Keepn' the Blues Alive

2004 50th Ann. Limited edition AMSE Stratocaster
2017 50's Baja Telecaster BSB

1968 Bandmaster with 2X12 cab C-rex speakers
VHT Special 6 Ultra combo

Visual Sound Route 66
Cmatmods Signa Drive


Top
Profile
Post subject: Re: Blackface bassman 1967 AB165
Posted: Fri Jun 08, 2012 2:59 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
You can solder or crimp a terminal lug to the ground wire and attach it to one of the power tranny screws OR you can solder the ground directly to the chassis. I generally prefer the former method. Make sure your new power cord is multi-strand three-conductor AWG 16.

HTH

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Blackface bassman 1967 AB165
Posted: Fri Jun 08, 2012 4:12 pm
Offline
Professional Musician
Professional Musician

Joined: Fri Jun 26, 2009 6:53 pm
Posts: 2252
Location: Harvard IL
Here you go, Chris. http:www.unclespot.com/3prongconversion.JPG You can bypass the ground switch by runnunig the black AC line straight to the fuse. I use 16ga power tool lines for this application, just a stouter plug....etc. How the heck do you get the website in red and able to be clicked on? Art

_________________
None of Us are free, if One of Us is chained !


Last edited by aclempoppi on Sun Jun 10, 2012 4:05 pm, edited 1 time in total.

Top
Profile
Post subject: Re: Blackface bassman 1967 AB165
Posted: Fri Jun 08, 2012 10:09 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
Once you paste the link in your post, highlight it and click the URL button above your post to bookend the link, making it clickable. In this case, your link is incomplete, it should be "http://www.unclespot.com/3prongconversion.JPG"

http://www.unclespot.com/3prongconversion.JPG

Or, highlight the link and click the Img button to bookend the link, and the picture will show directly in your post.


_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject: Re: Blackface bassman 1967 AB165
Posted: Sat Jun 09, 2012 12:16 am
Offline
Professional Musician
Professional Musician

Joined: Fri Jun 26, 2009 6:53 pm
Posts: 2252
Location: Harvard IL
Thanks Shimmy!!! That's just what I had off my laptop's "favorite" list. Not a computer savvy guy!!!! Art

_________________
None of Us are free, if One of Us is chained !


Top
Profile
Post subject: Re: Blackface bassman 1967 AB165
Posted: Sat Jun 09, 2012 11:33 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Jul 17, 2007 3:08 pm
Posts: 2889
yep thats it

Thanks !

_________________
Keepn' the Blues Alive

2004 50th Ann. Limited edition AMSE Stratocaster
2017 50's Baja Telecaster BSB

1968 Bandmaster with 2X12 cab C-rex speakers
VHT Special 6 Ultra combo

Visual Sound Route 66
Cmatmods Signa Drive


Top
Profile
Post subject: Re: Blackface bassman 1967 AB165
Posted: Sat Jun 09, 2012 11:44 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
You should be able to finish that up by this afternoon, Chris.

Rawk on!

8)

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Blackface bassman 1967 AB165
Posted: Sun Jun 10, 2012 6:49 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Jul 17, 2007 3:08 pm
Posts: 2889
I wish Arjay !
Invaided by inlaws the whole weekend.
Be lucky to survive !!!! :mrgreen:

_________________
Keepn' the Blues Alive

2004 50th Ann. Limited edition AMSE Stratocaster
2017 50's Baja Telecaster BSB

1968 Bandmaster with 2X12 cab C-rex speakers
VHT Special 6 Ultra combo

Visual Sound Route 66
Cmatmods Signa Drive


Top
Profile
Post subject: Re: Blackface bassman 1967 AB165
Posted: Sun Jun 10, 2012 8:35 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
blues bondsman wrote:
Invaided by inlaws the whole weekend.


OUCH!

I hate it when that happens.

:(

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Blackface bassman 1967 AB165
Posted: Mon Jun 11, 2012 12:44 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Jul 17, 2007 3:08 pm
Posts: 2889
So, What if I want to bypass both the outlet and the polarity switch ?

I think that is what i want to happen, bypass two potential problems and go right to the fuse, where do i connect the two transformer wires ???

Maximum safety and noise reduction too !!! (not that it has a noise issue)

And where are we buying filter caps from given the controversy over caps with incorrect ratings, fake labels etc...... ???

_________________
Keepn' the Blues Alive

2004 50th Ann. Limited edition AMSE Stratocaster
2017 50's Baja Telecaster BSB

1968 Bandmaster with 2X12 cab C-rex speakers
VHT Special 6 Ultra combo

Visual Sound Route 66
Cmatmods Signa Drive


Top
Profile
Post subject: Re: Blackface bassman 1967 AB165
Posted: Mon Jun 11, 2012 1:39 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Blues, I've never heard of that outlet causing problems. Unless it is physically damaged. But then again, I hardly ever use it... As most of my Fender amps have a two-prong in that position. I keep it two-prong for historical sake.

Bypassing the polarity switch and eliminating the "death cap" is a must. You know what I do? I pull the original OEM polarity switch. Clean it and keep it. And put in a new MIM Carling (just for historical sake-- as it's just a dummy switch). Those old switches are really so much better made than new OS (off-shore) ones. You should see the guts of some Chinese-made swtiches...

You wanna hear something funny? I bypass ALL polarity switches. But, I'd say half of the ppl that get these modded amps SWEAR the amp sounds much better with the switch in one postion versus the other. Perfect "placebo effect." :lol:

Good luck with that amp. Guess you maybe looking for a good vintage Fender Rever Unit?

:mrgreen:


Top
Profile
Post subject: Re: Blackface bassman 1967 AB165
Posted: Mon Jun 11, 2012 1:48 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Jul 17, 2007 3:08 pm
Posts: 2889
I have my bandmaster when i need some reverb tones.

Ya I just want the very safest wiring possible !

_________________
Keepn' the Blues Alive

2004 50th Ann. Limited edition AMSE Stratocaster
2017 50's Baja Telecaster BSB

1968 Bandmaster with 2X12 cab C-rex speakers
VHT Special 6 Ultra combo

Visual Sound Route 66
Cmatmods Signa Drive


Top
Profile
Post subject: Re: Blackface bassman 1967 AB165
Posted: Mon Jun 11, 2012 1:53 pm
Offline
Professional Musician
Professional Musician

Joined: Fri Jun 26, 2009 6:53 pm
Posts: 2252
Location: Harvard IL
Chris, the white wire from the new cable is joined to one transformer wire( solder joint and and a wire nut will do it). The other trans wire is connected to the on-off switch. Art

_________________
None of Us are free, if One of Us is chained !


Top
Profile
Post subject: Re: Blackface bassman 1967 AB165
Posted: Mon Jun 11, 2012 2:06 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Art, Yeah Black wire (HOT) of the three-conductor AC outlet wire goes to the fuse. White (NEUTRAL) from other tang on switch to PT.

Keep the green (GROUND) as short as possible. I ground it to a SEPARATE point on the chassis, from any other circuit grounds.

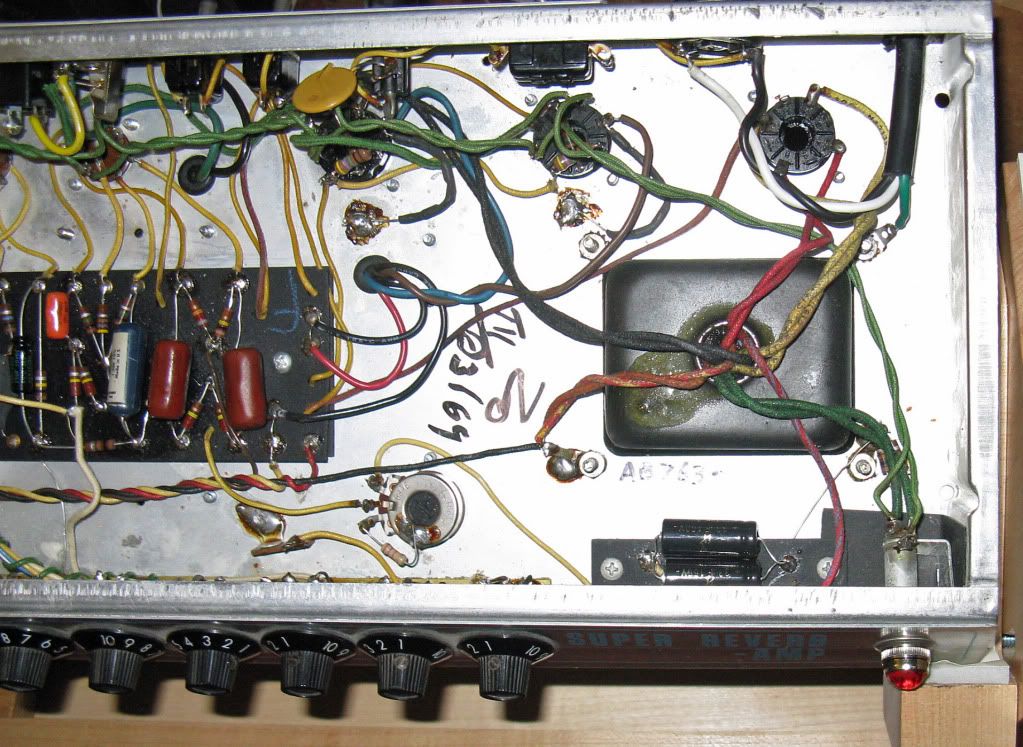

In photo, you see ground point. The white and black are hard to follow, but are hooked to power switch & fuse, respectively, by OEM yellow-brown, single-stranded push-back wiring running along edge of the back of the chassis.
