Post subject: Re: NAD Start of Build Thread
Posted: Tue Jan 24, 2012 7:06 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West

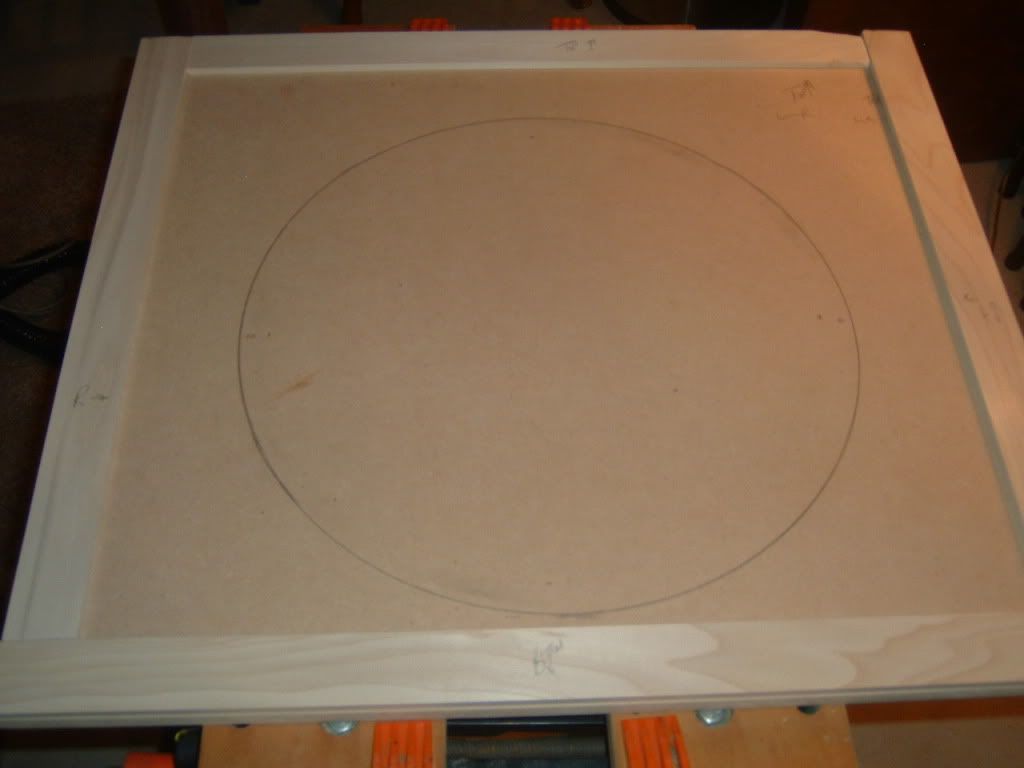

Speaker arrived in the mail today. Got the baffle cut to size for the cabinet and the furring stips cut...
Speaker placement figured out...3 3/4 inches from each side, 2 inches from the bottom. This will ensure clearance from OT.
Everything all double checked and a quick call to Arjay to ensure I have missed nothing...
tomorrow will be my test cut on my practice baffle for that all important 13 1/2 circular cut...keep your fingers crossed.

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: NAD Start of Build Thread
Posted: Wed Jan 25, 2012 6:23 am
Offline
Rock Star
Rock Star
User avatar

Joined: Wed Feb 17, 2010 11:38 am
Posts: 4333
Location: Tennessee
Anxiously awaiting the results...looking good T2. :D


Top
Profile
Post subject: Re: NAD Start of Build Thread
Posted: Wed Jan 25, 2012 7:25 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
Thanks Reb. Well I made my cut, all went well. I mounted the speaker, test fitted the cab with the chassis, speaker baffle and speaker. Plenty of clearance for the tubes and OT. I glued the furring strips and corner piece for the Fender logo to the baffle so it is ready as soon as the glue dries.

If it is nice this weekend (supposed to be) I will get the baffle painted on Friday, Re-attach the grill cloth and do one more test fit...then all should be ready for re-assembly on Sunday since no Football to watch.

I will do the last batch of pics along the way on the re-assemble, and of course the after pics and maybe put it along side the "Before". This has been a fun project, and certainly won't be my last. I learned alot along the way about how Fender built its amps back in the day.

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: NAD Start of Build Thread
Posted: Sat Jan 28, 2012 9:48 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
The Bada$$ Bantam Bass is complete! This thing with the 65 Jensen 15 inch concert speaker sounds amazing on BOTH channels. I didn't expect this, but the Bass Channel does sound pretty close to the BF Bassman...nice snap and tone to the bone...sounded great with my 60's Classic Strat. The second channel also sound great, a bit midrange honk to it. Now I just to need to go find a nice reissue reverb unit to go with it!

And here are the pics.

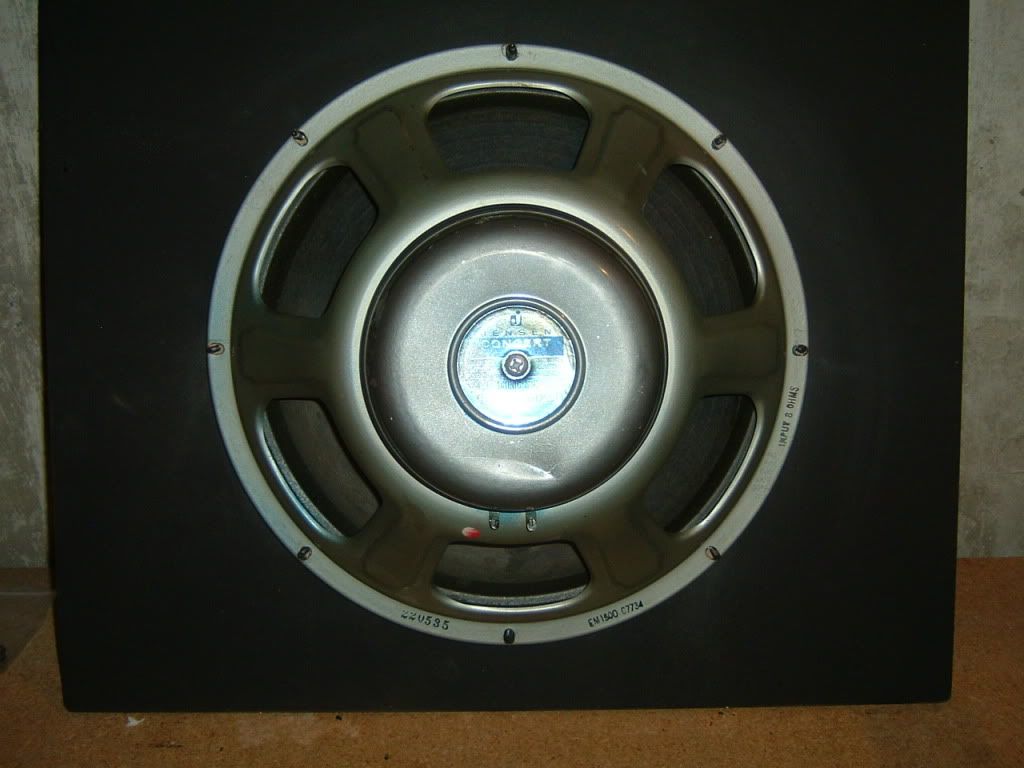

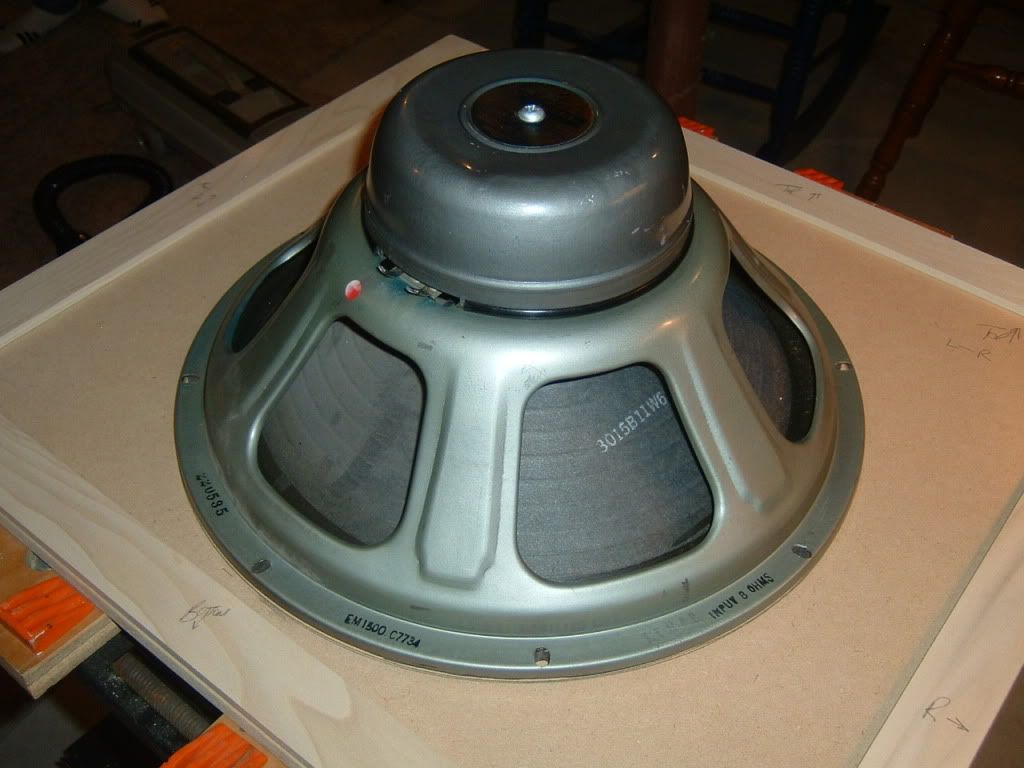

Speaker onto the new baffle...
Baffle mounted to cab...

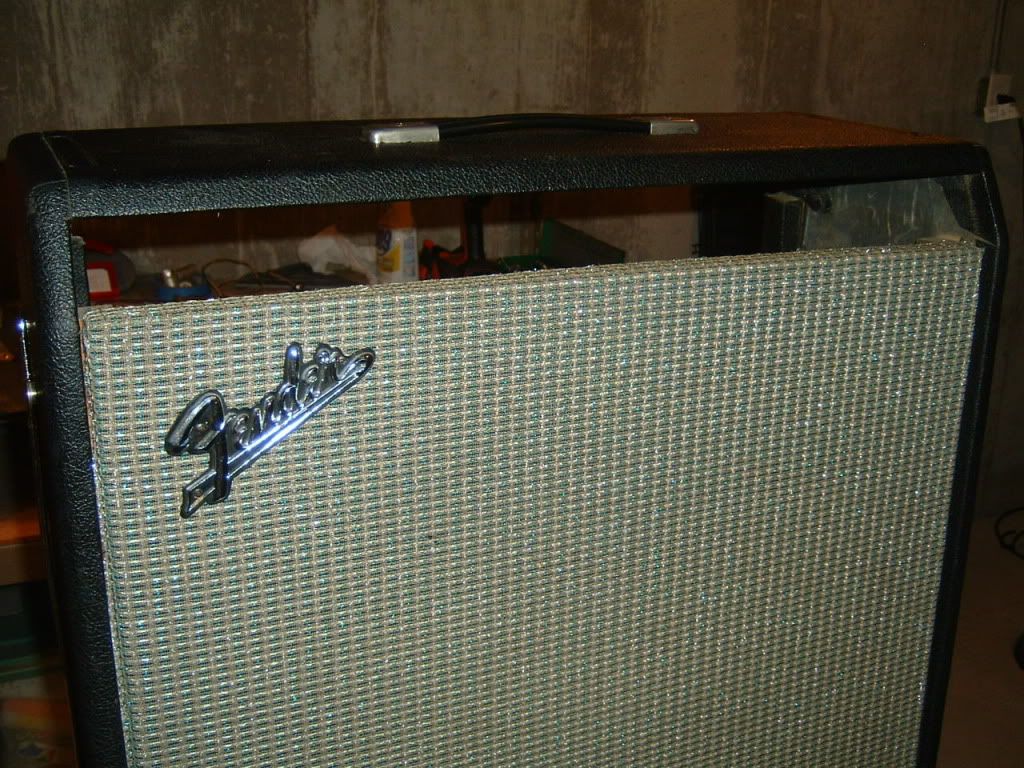

Grill cloth reused, mounted into cab...
Chassis loaded to cab...

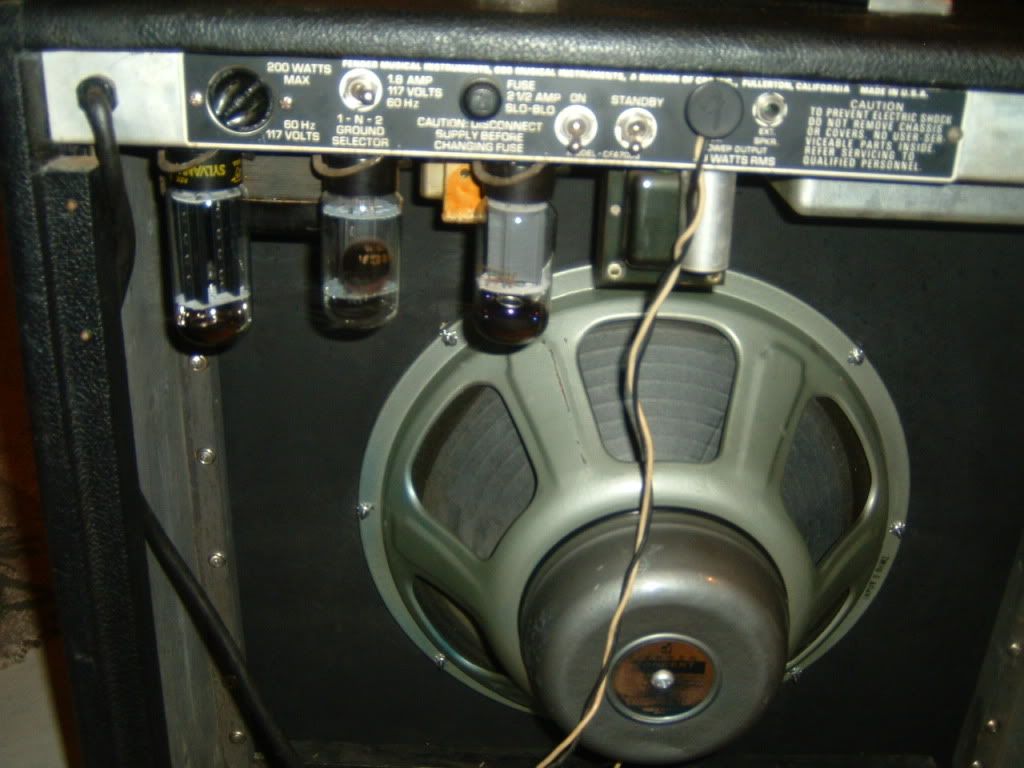

Tubes loaded ready for final tweeks...

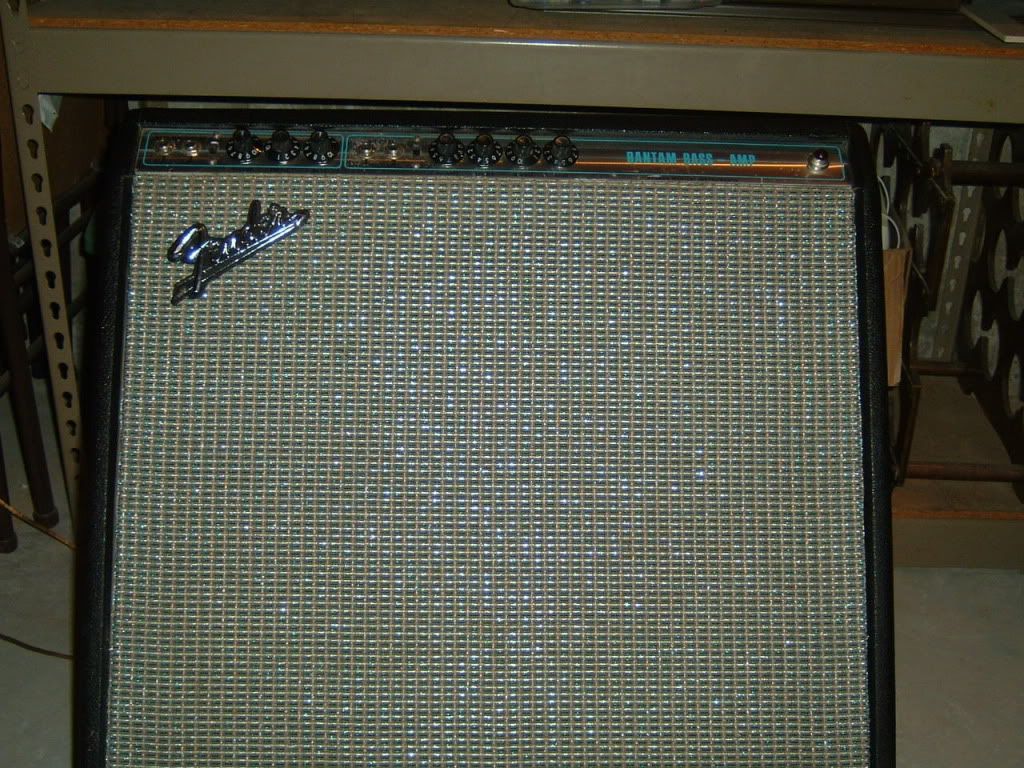

Final assembly...ready for the all important standby and power switch flip
This was a great second project...and I couldn't have done it without Arjay...can't thank him enough for all the advice and how too's! This turned out great and now I have another very gigable (and not too heavy!) amp with some great sounds. I would certainly recommend anyone looking for a nice sounding amp to check out the Bantam...just remember to dump that Yamaha speaker!

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: NAD Start of Build Thread
Posted: Sat Jan 28, 2012 11:37 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
T2Strat, Very Cool! Betcha that thing OOZES Bassman tones. Jensen Concert line speakers sure sound nice.


Top
Profile
Post subject: Re: NAD Start of Build Thread
Posted: Sun Jan 29, 2012 9:52 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
BMW2002Ti wrote:
T2Strat, Very Cool! Betcha that thing OOZES Bassman tones. Jensen Concert line speakers sure sound nice.


BMW...yes it does. I am not sure I could tell the diffence between this one and BF Bassman...maybe somebody else could, but not me. I am so digging this amp! First time I've had a 15 inch speaker in an amp and it sounds wonderful...like good vintage Jensens usually do!

I enjoyed doing this project and even enlisted my youngest son (a Drummer) to help me out with it, and he said he had a good time working with his father on it. Him and I will be jamming this afternoon with the Bantam.

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: NAD Start of Build Thread
Posted: Thu Feb 02, 2012 6:28 am
Offline
Rock Star
Rock Star
User avatar

Joined: Wed Feb 17, 2010 11:38 am
Posts: 4333
Location: Tennessee
Very cool transformation T2!...what a unique amp that's gonna be. :D


Top
Profile
Post subject: Re: NAD Start of Build Thread
Posted: Fri Feb 03, 2012 4:58 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
Rebelsoul wrote:
Very cool transformation T2!...what a unique amp that's gonna be. :D



Reb, Thanks...it is a unique guitar amp for sure. It isn't a Brown Face Super...but it does have some very sweet tones. Very Bassman like on the Bass Channel, and the other channel can get nice and nasty with much more mids (maybe due that extra knob). I am loving this amp and really enjoyed the re-build so much so, I am thinking that about maybe a Mojotone 5F1 Kit build for something a quite a bit more challenging, unless another amp needing help comes my way first!

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: NAD Start of Build Thread
Posted: Fri Feb 03, 2012 6:47 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Tue Apr 07, 2009 7:05 pm
Posts: 2333
That amp looks amazing T2, I applaud your fine work! Enjoy her!


Top
Profile
Post subject: Re: NAD Start of Build Thread
Posted: Fri Feb 03, 2012 8:51 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
Toronado wrote:
That amp looks amazing T2, I applaud your fine work! Enjoy her!



Tornado, thanks...I am certainly no Retroverbial...but grasshopper has to start somewhere...

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
