Post subject: 1957 Vintage Fender Champ w/6in speaker.
Posted: Wed Dec 28, 2011 6:28 pm
Offline
Hobbyist
Hobbyist
User avatar

Joined: Thu Aug 02, 2007 8:34 pm
Posts: 9
Location: Los Angeles
I have a 57 Champ with 6 in speaker. Great body no rips. Brown leather strap. All original parts. Works ok. I get hum when turned up. Grey 2 prong electric cord.
How to repair problem? Tubes? Repair Shop?
Might sell if to expensive to fix. Would like a larger speaker. What do you think?


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: 1957 Vintage Fender Champ w/6in speaker.
Posted: Wed Dec 28, 2011 6:47 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Sounds like you need to re-cap the power supply's electrolytic caps. I always ramp-up the new caps with either the old light bulb trick or a Variac. This helps you check for bad solders, mis-wires, or shorting--- before total destruction.

Link to light bulb current limiter:

http://pontoppidan.info/lars/index.php? ... ies&page=5

Good luck with that amp! Any photos?


Top
Profile
Post subject: Re: 1957 Vintage Fender Champ w/6in speaker.
Posted: Thu Dec 29, 2011 12:05 pm
Offline
Rock Star
Rock Star

Joined: Mon Apr 05, 2010 2:37 pm
Posts: 8708
Location: Natural Bridge, Virginia
Should be a super easy fix. There is nothing in the amp! :lol:

http://ampwares.com/schematics/champ_5f1.pdf

_________________
Bill



Top
Profile
Post subject: Re: 1957 Vintage Fender Champ w/6in speaker.
Posted: Thu Dec 29, 2011 2:22 pm
Offline
Hobbyist
Hobbyist

Joined: Tue Sep 22, 2009 11:18 am
Posts: 23
If you are not sure bring it to a respectable repair shop and have the two prong plug changed . Have the amp checked over and you have an amp worth over $1000. Well worth a check up cost.


Top
Profile
Post subject: Re: 1957 Vintage Fender Champ w/6in speaker.
Posted: Thu Dec 29, 2011 6:19 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

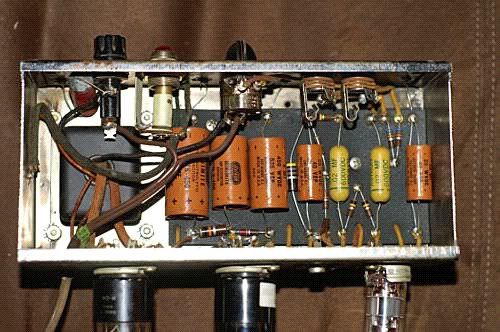

This is what the stock guts looks like. One 16mfd on left side of board (this maybe an 8mfd if the amp is a 5E1 circuit). With two 8mfd 'lyics next to it. I change the bypass cap on the output tube and input tube, if it has a bypass cap (some don't). Polarity is all (+) to the bottom of the photo (breadboard).


Changing to three prong outlet is easy for this amp (no Ground switch).
