Post subject: What speakers do I have?
Posted: Sat Dec 03, 2011 8:45 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Dec 03, 2011 5:12 pm
Posts: 5
First off I was able to figure out a lot from the code but I'm still stumped on the actual year. I picked up a peavey 4x12 real cheap loaded with Fender speakers. One speaker is diferent than the other 3. Let me start with the matching 3 speakers, all frame and cone codes are the same on each. They measure 13 ohms. code is 465-418 and 125L6-1. I know that they are Oxfords made in the 18th week of...'64 or '74? How can I tell with out knowing what they originally came out of?

The non matching fender speaker is 6 ohms. Code is 328533. I know that it is a Utah speaker from the 33rd week of '65 or '75? Again how can I tell the actual year?

All the speakers have the blue Fender label on the back. I did notice when searching the web that some have "made in usa" on the sticker and some dont. All 4 of my speakers have that if that is any help.

I have photos and can upload them to photobucket if that would help.

Thanks


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: What speakers do I have?
Posted: Sat Dec 03, 2011 9:24 pm
Offline
Hobbyist
Hobbyist

Joined: Sat Dec 03, 2011 5:12 pm
Posts: 5

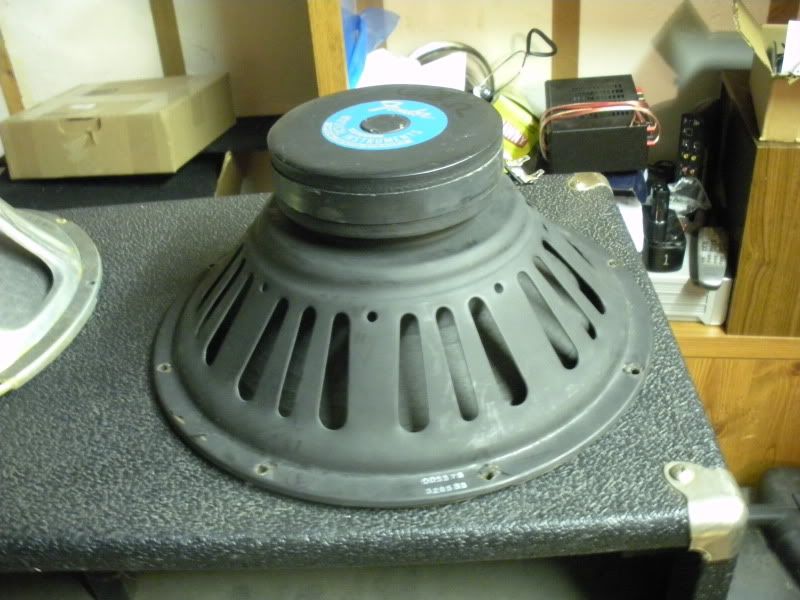

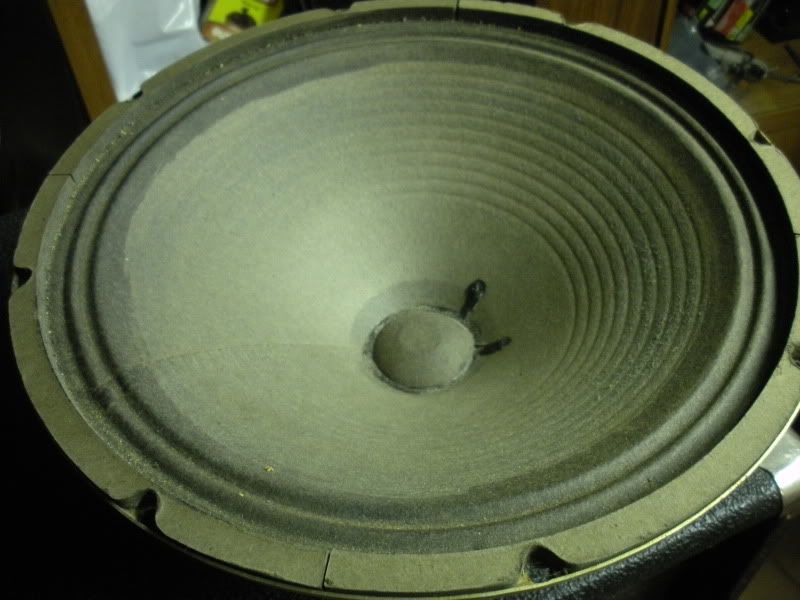

I have 3 speakers like the top 2 pictures.

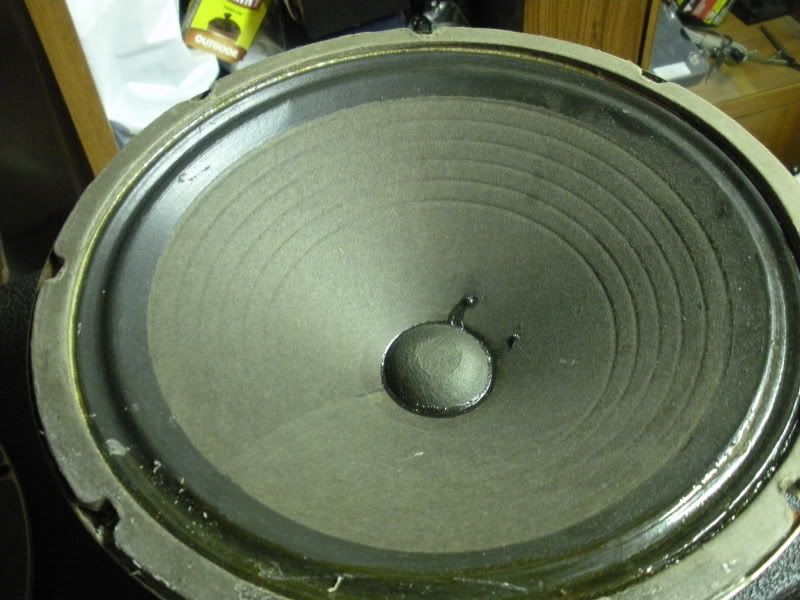

These 2 pictures are of the non matching speaker.




Top
Profile
Post subject: Re: What speakers do I have?
Posted: Sat Dec 03, 2011 9:30 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Wed Feb 17, 2010 11:38 am
Posts: 4333
Location: Tennessee

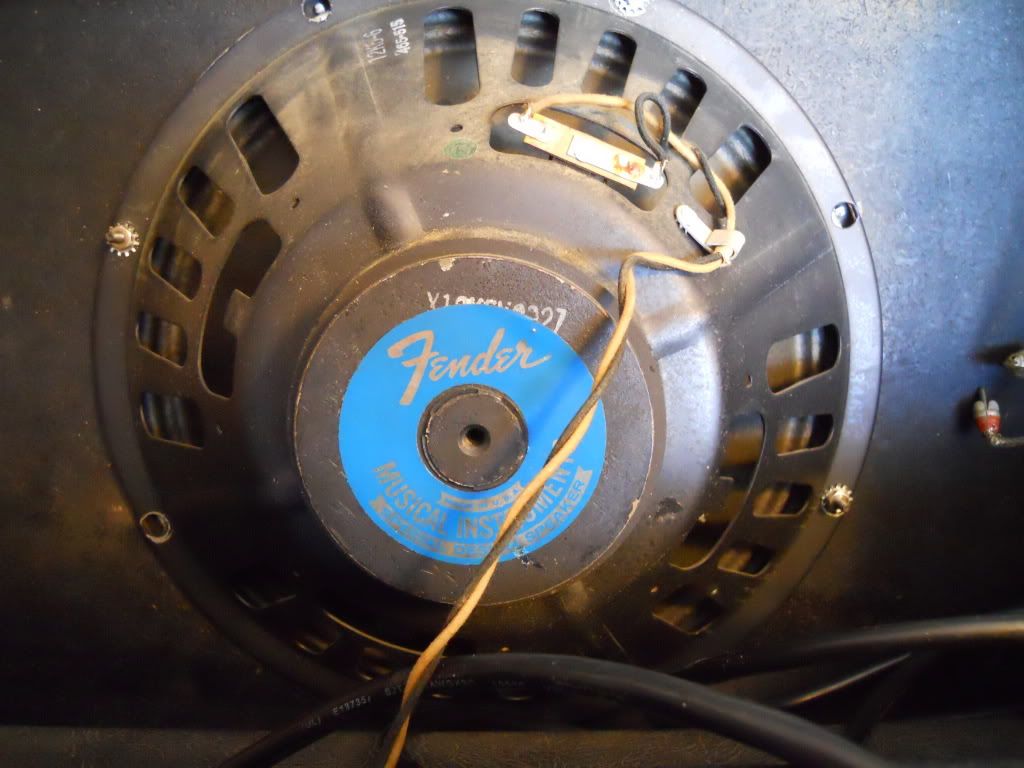

Here is a '65 Oxford in my Deluxe Reverb.


Top
Profile
Post subject: Re: What speakers do I have?
Posted: Sat Dec 03, 2011 9:32 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Wed Feb 17, 2010 11:38 am
Posts: 4333
Location: Tennessee
Another view...1965 Oxford


Top
Profile
Post subject: Re: What speakers do I have?
Posted: Sat Dec 03, 2011 9:51 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Wed Feb 17, 2010 11:38 am
Posts: 4333
Location: Tennessee
And two 1965 Utah speakers in my '66 Pro Reverb for comparison.


Top
Profile
Post subject: Re: What speakers do I have?
Posted: Sat Dec 03, 2011 10:00 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Wed Feb 17, 2010 11:38 am
Posts: 4333
Location: Tennessee
I don't know what year those Oxfords are but you can clearly tell they aren't 60s,and the Utah is from the '70s maybe?


Top
Profile
Post subject: Re: What speakers do I have?
Posted: Sun Dec 04, 2011 12:43 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
The Utah presents an anomaly. Every Utah from the 'late '60 or early '70s that I've seen used a label like this......


Like most OEM Utahs made for Fender, this speaker carries the FMI P/N of "081810" which correlates to a driver intended for a Bandmaster, Bandmaster Reverb, Quad Reverb, or Deluxe Reverb. I'm betting the OP's speaker actually dates to the '80s -- and the enlarged magnet structure tells me it was intended for high-power applications (perhaps a red-knob "Evil Twin" or a Concert Amp).

The Oxfords are also unusual in that they all seem to be fitted with front-loading gaskets. No Fender amps from the '60 mounted the speakers in that manner and only a handful of cabs from the '70s were thus configured. I'm betting that these drivers are from the '80s as well -- perhaps from a 4 x 12 "snake-skin" Showman or carpeted M80 enclosure.

HTH

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: What speakers do I have?
Posted: Sun Dec 04, 2011 6:53 am
Offline
Hobbyist
Hobbyist

Joined: Sat Dec 03, 2011 5:12 pm
Posts: 5
Didnt the speaker code change in the 70's? Giving the year 2 digits instead of 1 like the way mine are. If they were from the 80's or newer as suggested my code would be 7 digits and not 6. The oxfords have a "L" code making them 30 watt speakers..is this considered high power application?


Top
Profile
Post subject: Re: What speakers do I have?
Posted: Sun Dec 04, 2011 8:15 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Your "Oxfords" look like no Oxford I've ever seen before. And the designation on the ID label is very suspect.

These are genuine Oxford 12L6's from 1974, pulled from my all-original '74 Bandmaster cab......


Note the quirky design geometry of the stamped-steel frame, the six-digit "465-412" EIA code, and the Fender P/N (081810) indicating its intended use.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: What speakers do I have?
Posted: Sun Dec 04, 2011 10:07 am
Offline
Hobbyist
Hobbyist

Joined: Sat Dec 03, 2011 5:12 pm
Posts: 5
@ Retroverbial, are you thinking I have some cheap reproductions that someone badged to make look like genuine Fender speakers? My part number is 010662, what is Fenders intended use for that part number. (if its a real number)


Top
Profile
Post subject: Re: What speakers do I have?
Posted: Sun Dec 04, 2011 10:14 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
fixr1984 wrote:
@ Retroverbial, are you thinking I have some cheap reproductions that someone badged to make look like genuine Fender speakers?


This is not beyond the realm of possibility. Labels are easy to counterfeit or bootleg (there are repro mylar Fender speaker decals available on Ebay at this very moment).


fixr1984 wrote:
My part number is 010662, what is Fenders intended use for that part number. (if its a real number)


I don't have that info -- but the number is formatted correctly for a Fender P/N.

You have a real enigma to solve, no doubt about it.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: What speakers do I have?
Posted: Sun Dec 04, 2011 10:43 am
Offline
Hobbyist
Hobbyist

Joined: Sat Dec 03, 2011 5:12 pm
Posts: 5
I did a seach on the 125L6-1 number and came across and old archived thread. The guy was looking for info on a speaker from an old Bassman cab with the same Fender p/n and cone number as mine, the only diference is his are dated 10 weeks older than mine. It was said that it is a "64 Oxford bass speaker. Could this be why mine look different than all of your speakers cause its a bass speaker and not a guitar speaker?

Here it is:
http://archive.ampage.org/threads/1/gag ... ker-1.html


Top
Profile
Post subject: Re: What speakers do I have?
Posted: Sun Dec 04, 2011 10:56 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
The specified Oxford speaker for a Bassman cab would've been the 12T6-10......the same type used in a Twin Reverb guitar amp.

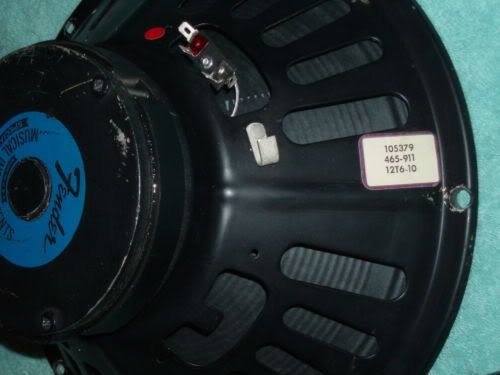

This is a 12T6-10 from the 11th week of 1969......


Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: What speakers do I have?
Posted: Sun Nov 25, 2012 5:28 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Thu May 21, 2009 5:19 pm
Posts: 49
Location: Gulf Coast Florida
These two Oxfords, I removed from my 1968 (stamped) Bandmaster Cabinet which I bought in the 70's.
To see the 2 pics, please go to the site and scroll down to bottom of page ... I can't figure out how to post them on this thread :oops:

http://TheHouseWreckerz.com


Top
Profile
Post subject: Re: What speakers do I have?
Posted: Sun Nov 25, 2012 11:46 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Here's a little blurb on Oxford speakers, of that era:

http://www.webphix.com/schematic%20heav ... istory.pdf

http://home.provide.net/~cfh/fender2.html#amps
