Post subject: 1963 SUPER VIBRATO PROBLEM
Posted: Fri Jun 17, 2011 10:14 am
Offline
Hobbyist
Hobbyist

Joined: Fri Jun 17, 2011 9:58 am
Posts: 4
I have a newly acquired a 1963 Super 6G4-A. I received it without tubes and installed all new JJ's. It has been in storage for 20+ years. My voltages are all to specification. When the Vibrato is switched on I get a pulsing thump sound. I have experience working on a few chassis. This one is special in that I would like to keep it as original as possible. I would like to update the chord with a new ground but other than that would like to keep it original. All the caps seem to be to specification.
If one of you could be so kind as to steer me correctly to fixing the vibrato I would sincerely appreciate your time. With the speed and intensity knobs off I get a pulsing thump. Other than that it is a tone machine. Both channels sound great with exception of the Vibrato. I hate to start diving into such a pristine unmolested chassis but want it fixed correctly with the least intrusion.

You Rock!!!!!!!!

Peace,
SMPL


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: 1963 SUPER VIBRATO PROBLEM
Posted: Fri Jun 17, 2011 10:23 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
The Super Amp's harmonic tremolo is one of the most complex circuits ever designed by Leo -- there are a number of different components that may be responsible for the symptoms, including any one of the three tubes dedicated solely to the trem.

Here's the schematic......

http://web.archive.org/web/201001051823 ... _schem.pdf

Be advised though that there have been a number of documented-and-legitimate factory variations to the Super's circuit that are not reflected in the original layout drawings.

HTH

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 1963 SUPER VIBRATO PROBLEM
Posted: Fri Jun 17, 2011 10:33 am
Offline
Hobbyist
Hobbyist

Joined: Fri Jun 17, 2011 9:58 am
Posts: 4
Thanks for the Schematic. I checked it out earlier when I measured all the voltages. Is there a good starting point on chasing this problem down?

SMPL


Top
Profile
Post subject: Re: 1963 SUPER VIBRATO PROBLEM
Posted: Fri Jun 17, 2011 12:03 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Jun 17, 2011 9:58 am
Posts: 4
Finally dialed it in. A BAD GROUND!!!! This is a great sounding amp.!

Cheers,
SMPL


Top
Profile
Post subject: Re: 1963 SUPER VIBRATO PROBLEM
Posted: Fri Jun 17, 2011 12:09 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Outstanding!

How about some pics for us amp junkies?

:lol:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 1963 SUPER VIBRATO PROBLEM
Posted: Fri Jun 17, 2011 12:40 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
I have a 1962 Pro Amp with the three tube phase/oscillator vibrato circuit, also. Best Vibrato, rivaling a good Vibro Champ. I'll shown mine off again. Much to the dismay of those on this board. Good luck with your unit. These are very unique sounding Fenders. I believe yours has two 12-inchers? My Pro has one 15-incher.





Top
Profile
Post subject: Re: 1963 SUPER VIBRATO PROBLEM
Posted: Fri Jun 17, 2011 4:03 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Jun 17, 2011 9:58 am
Posts: 4

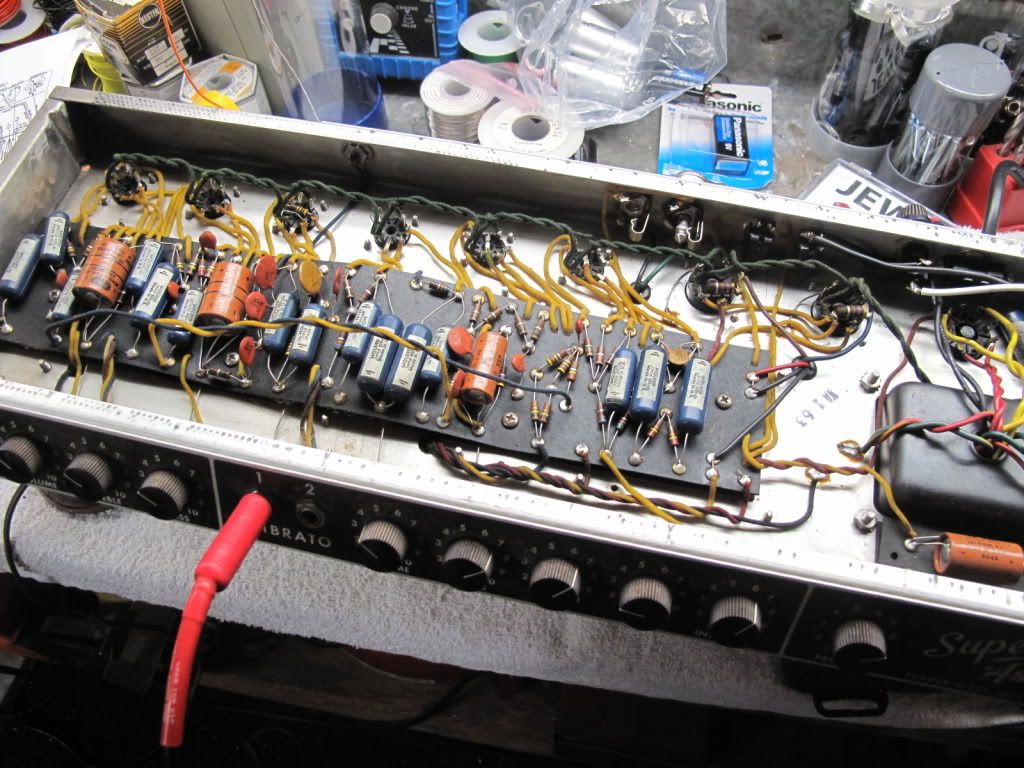

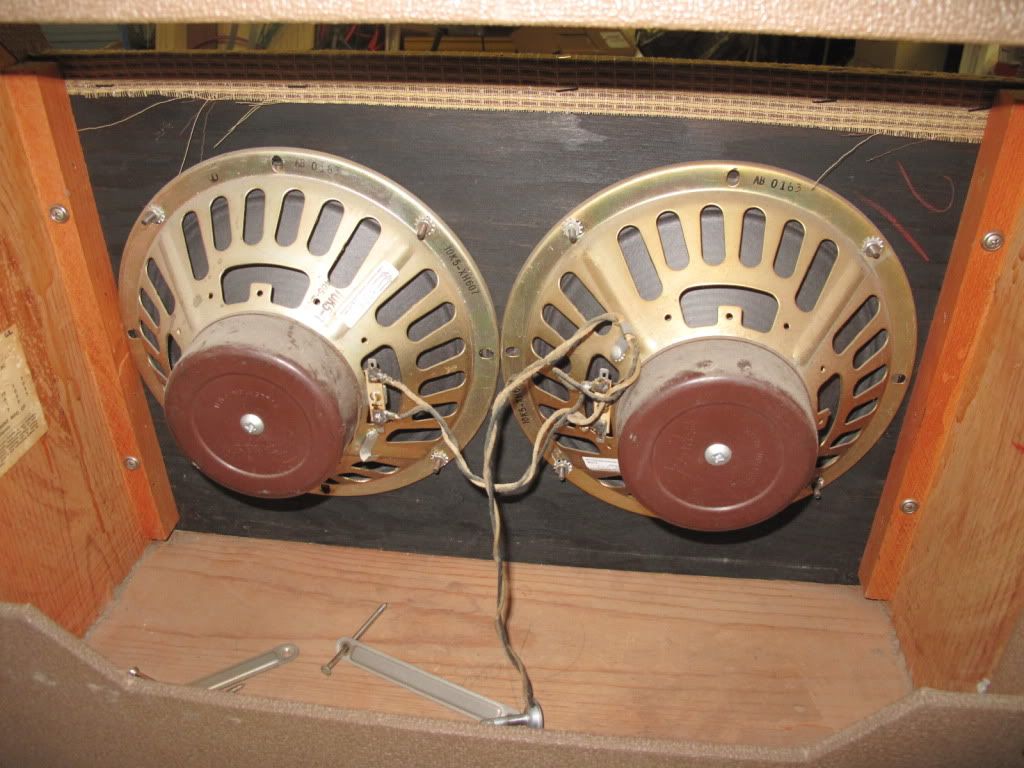

Here you go my brothers. Hope all is well with you! This one has two 10" speakers.

Peace,
SMPL




Top
Profile
Post subject: Re: 1963 SUPER VIBRATO PROBLEM
Posted: Fri Jun 17, 2011 6:04 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

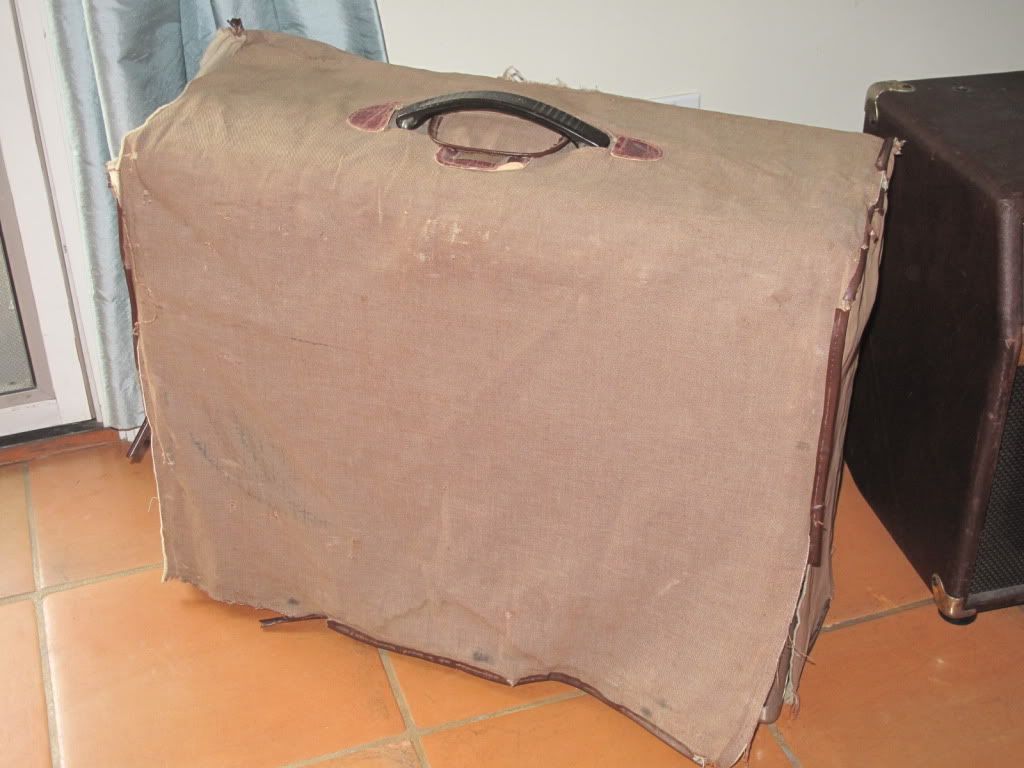

Very nice! That puppy has the best rectifier. That GZ34? Right? The one thing I kinda wish the Pro had. Boy that original cover... has seen some mileage. :)

Show you my rear-end (the amp's---not to worry):


And the guts of that Reverb Unit:



Top
Profile
Post subject: Re: 1963 SUPER VIBRATO PROBLEM
Posted: Fri Jun 17, 2011 8:41 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Damn nice looking Super......damn nice!

Looks like it's all there too -- right down to the original brown footswitch and the OEM Oxford 10K5's.

What a find!

RAWK ON

8) 8) 8)

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 1963 SUPER VIBRATO PROBLEM
Posted: Sat Jun 18, 2011 1:49 am
Offline
Rock Star
Rock Star
User avatar

Joined: Wed Feb 17, 2010 11:38 am
Posts: 4333
Location: Tennessee
Man that's a beauty!...I have a 1960 Super,the tube chart says 5G4 but there's variations....mine has had some component changes.


Top
Profile
Post subject: Re: 1963 SUPER VIBRATO PROBLEM
Posted: Sat Jun 18, 2011 1:51 am
Offline
Rock Star
Rock Star
User avatar

Joined: Wed Feb 17, 2010 11:38 am
Posts: 4333
Location: Tennessee


Top
Profile
Post subject: Re: 1963 SUPER VIBRATO PROBLEM
Posted: Sat Jun 18, 2011 2:00 am
Offline
Rock Star
Rock Star
User avatar

Joined: Wed Feb 17, 2010 11:38 am
Posts: 4333
Location: Tennessee
I LOVE the brown amps....right now I have a line on a 1962 Vibrolux,I've been wanting one for a long time,I haven't checked it out yet but if it's decent and I bring it home,y'all will see it.
The Browns have a nice round,thicker tone,lots of bottom and great mids....they make me take lots of time away from my blackface amps.
You're very fortunate to have that Super,I'll bet it sounds great...enjoy!


Top
Profile
Post subject: Re: 1963 SUPER VIBRATO PROBLEM
Posted: Sat Jun 18, 2011 12:36 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Rebelsoul wrote:
The Browns have a nice round,thicker tone,lots of bottom and great mids....


+1!

And that heavenly harmonic trem.

8)

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 1963 SUPER VIBRATO PROBLEM
Posted: Sat Jun 18, 2011 1:59 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
On that Super, I have one "pain-in-the-ass" suggestion, you may want to resolder the black (hot) AC line to the fuse. And the white (neutral) line to the now "out of commision" old ground switch. And I presume that "death cap" is outta the circuit now that the unit is properly grounded.

You might be able to see it in this photo better. Why Fender put the neutral line to the fuse (OEM) is beyond me. They did it to every brownie, BF, and SF I've seen:

This site may also help:

http://www.unclespot.com/3prongconversion.JPG




Top
Profile
Post subject: Re: 1963 SUPER VIBRATO PROBLEM
Posted: Sun Jun 19, 2011 10:56 am
Offline
Rock Star
Rock Star
User avatar

Joined: Wed Feb 17, 2010 11:38 am
Posts: 4333
Location: Tennessee
+1 BMW
I do that three prong conversion on all of my amps,rewiring them to that diagram where the hot is fused...it only makes sense.
