Post subject: Silverface Bassman-bass channel conversion
Posted: Thu Jun 16, 2011 1:36 pm
Offline
Hobbyist
Hobbyist

Joined: Mon Oct 05, 2009 10:14 pm
Posts: 33

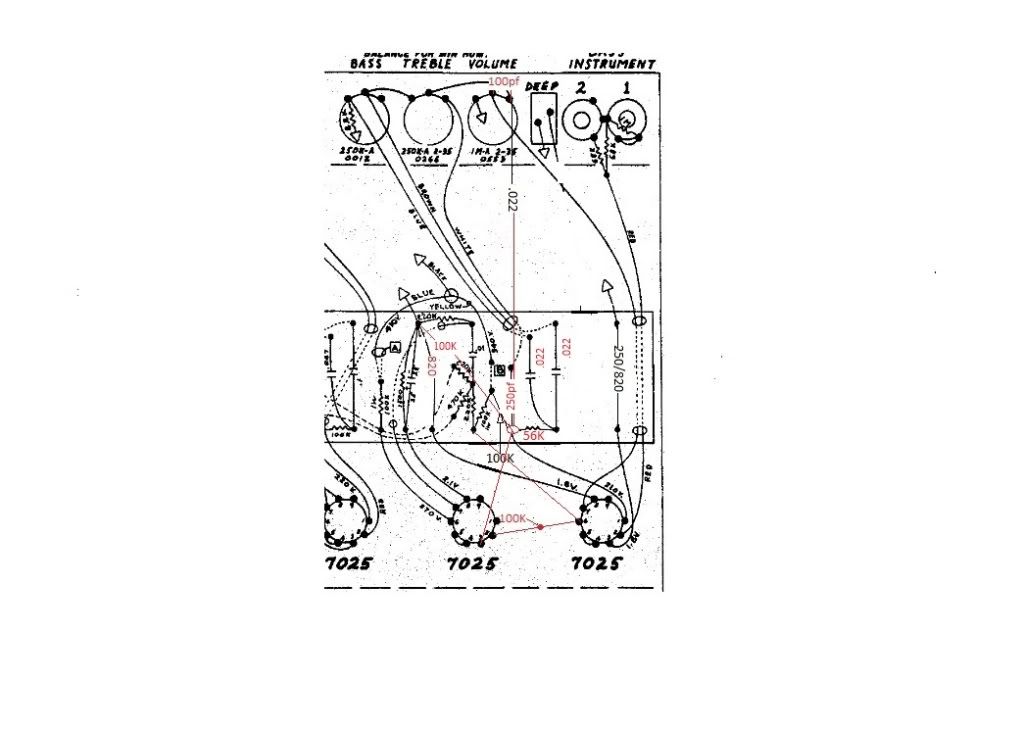

I recently converted a Silverface Bassman, AC568 circuit, to AA864 specs. I was thinking about converting the bass channel to a 5F6 circuit and so I did a drawing of my idea. I want to emphasize that this is only the pre-amp part of the circuit. I have not drawn up the rest of the conversion yet. I just want some opinions on whether this would work or not. Or if someone has done this yet how did it work out. Here is a link to the schematic:
http://s169.photobucket.com/albums/u217 ... onversion/

Thanks everyone


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Silverface Bassman-bass channel conversion
Posted: Thu Jun 16, 2011 2:00 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
I'm prolly missing something, but it seems that you are placing the cathode of the second 12AX7 onto the volume control (via a 250pfd and 0.022mfd cap)? I keep timing out. Hopefully this will post.




Bassman 5F6 circuit and layout:

http://www.ampwares.com/schematics/bassman_5f6.pdf


Top
Profile
Post subject: Re: Silverface Bassman-bass channel conversion
Posted: Thu Jun 16, 2011 2:10 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
+1

Also, my concern is the lack of a NFL (with the requisite presence control) to voice the channel as a true 5F6-A circuit. It might still sound okay though.
