Post subject: BF VC restoration
Posted: Sat Apr 16, 2011 6:31 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

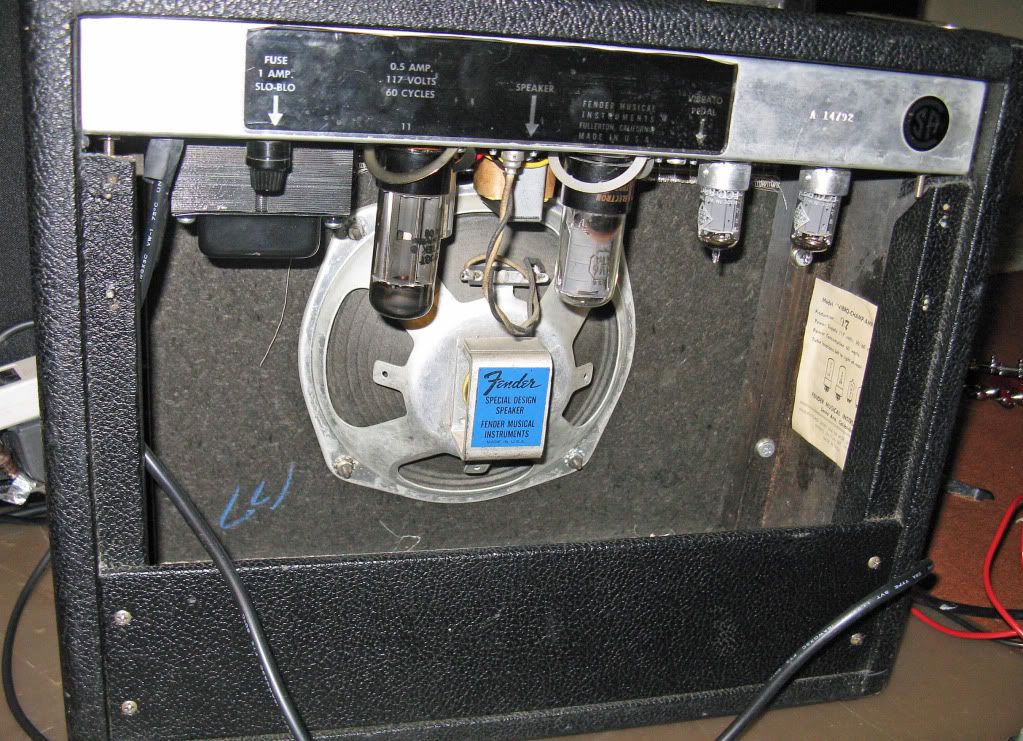

Before shot:

See damage to power resistors:

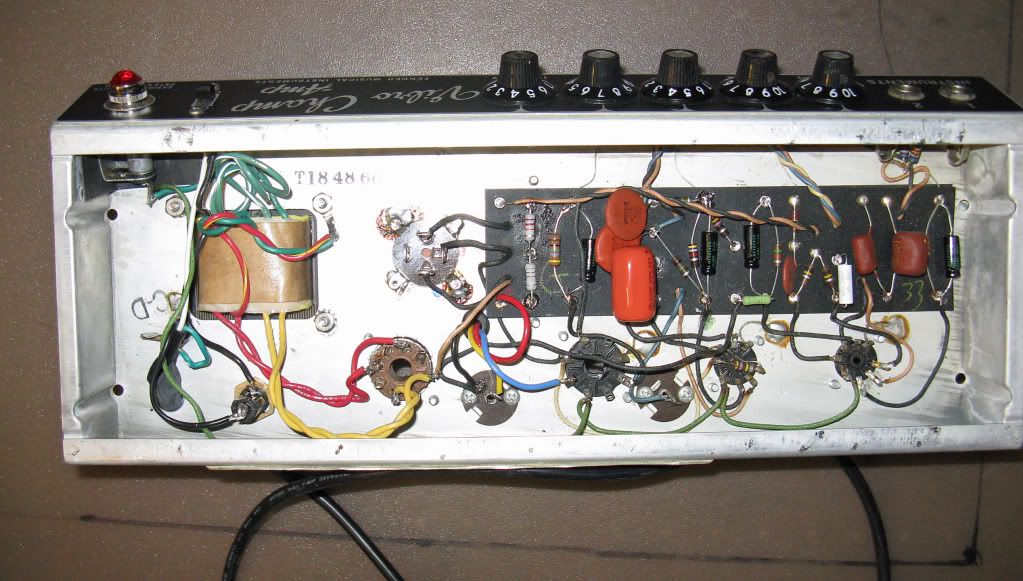

After new rectifier socket, PT, some resistors, & caps: Use Mundorf cap in one position. Mostly setup back to 5F1 circuit



Hairy knee test at 0400:



MOST awesome vibrato with need Sprague caps and real TFK ECC83 (came with amp) driven circuit: Very warm, slow overdrive SE amp tone.
