Post subject: My ''new'' vibrolux reverb silverface
Posted: Tue Nov 16, 2010 7:03 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Oct 31, 2007 12:03 pm
Posts: 76
Hi!

I just bought the old amp of my uncle this week. It is a Fender Vibrolux Reverb silverface 1973. I do not have it yet (I'll be the proud owner of this amp on november 26th).

It is modified to ''sound like'' a blackface, the original speakers have been rebuilt, the power light is missing and the tremolo channel seems to be dead (I was told it was a bad solder and something easy to fix for an expert). Otherwise, this amp is in good shape!

I paid it 350$. Very good deal? Good deal? Bad deal? I can't wait to have it!

As soon as I a have it, I'll post some pics so you'll be able to tell me your opinion.


Top
Profile
Fender Play Winter Sale 2020
Post subject:
Posted: Tue Nov 16, 2010 7:23 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Great deal, Tomyyy!

Find a qualified tech and turn him loose on it.

The VR is one of the finest club amps ever made.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: My ''new'' vibrolux reverb silverface
Posted: Wed Nov 24, 2010 9:21 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Mon Jul 16, 2007 6:51 pm
Posts: 25350
Location: Witness Protection Program
Tomyyy wrote:
Hi!

I just bought the old amp of my uncle this week. It is a Fender Vibrolux Reverb silverface 1973. I do not have it yet (I'll be the proud owner of this amp on november 26th).

It is modified to ''sound like'' a blackface, the original speakers have been rebuilt, the power light is missing and the tremolo channel seems to be dead (I was told it was a bad solder and something easy to fix for an expert). Otherwise, this amp is in good shape!

I paid it 350$. Very good deal? Good deal? Bad deal? I can't wait to have it!

As soon as I a have it, I'll post some pics so you'll be able to tell me your opinion.


GREAT Deal!!! Small problems for a good tech and a GREAT amp!

_________________
Being able to play and enjoy music is a gift that's often taken for granted.

Don't leave home without it!


Top
Profile
Post subject:
Posted: Wed Nov 24, 2010 9:33 am
Offline
Rock Star
Rock Star
User avatar

Joined: Wed Feb 17, 2010 11:38 am
Posts: 4333
Location: Tennessee
great deal,and like Arjay and Mike said,let a good tech fix it and you will have a great club amp,.......I've always liked the Vibrolux amp.


Top
Profile
Post subject:
Posted: Wed Nov 24, 2010 10:38 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Pics laddie, or it didn't happen!

:mrgreen:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject:
Posted: Wed Nov 24, 2010 2:49 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Oct 31, 2007 12:03 pm
Posts: 76
As I said

Quote:
I'll be the proud owner of this amp on november 26th


I'll post pics this week end.


Top
Profile
Post subject:
Posted: Sat Nov 27, 2010 6:14 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Oct 31, 2007 12:03 pm
Posts: 76

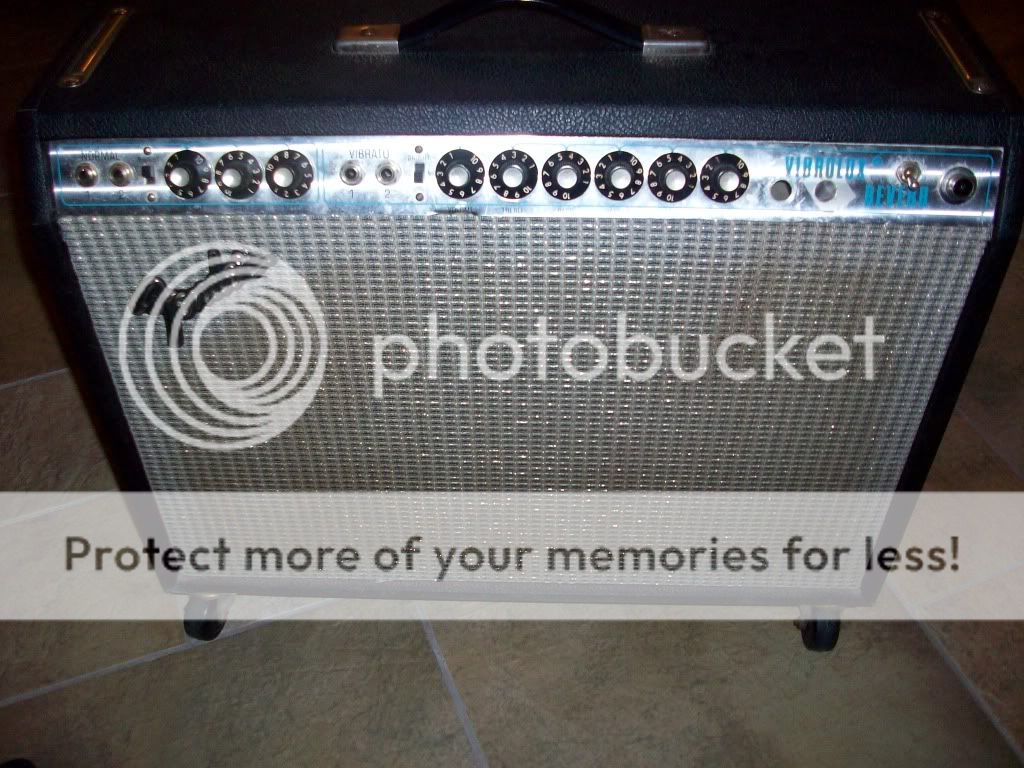

Ok, here are the pics of my amp!

Here are the modifications (no good mods to me...)

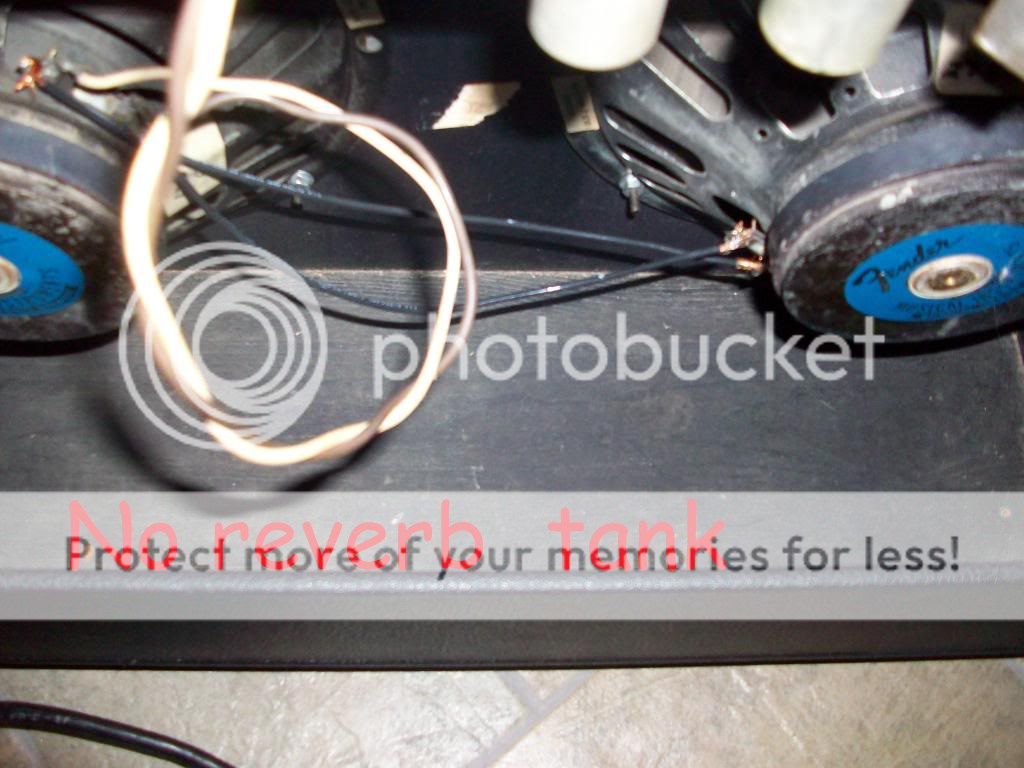

-There's no reverb tank

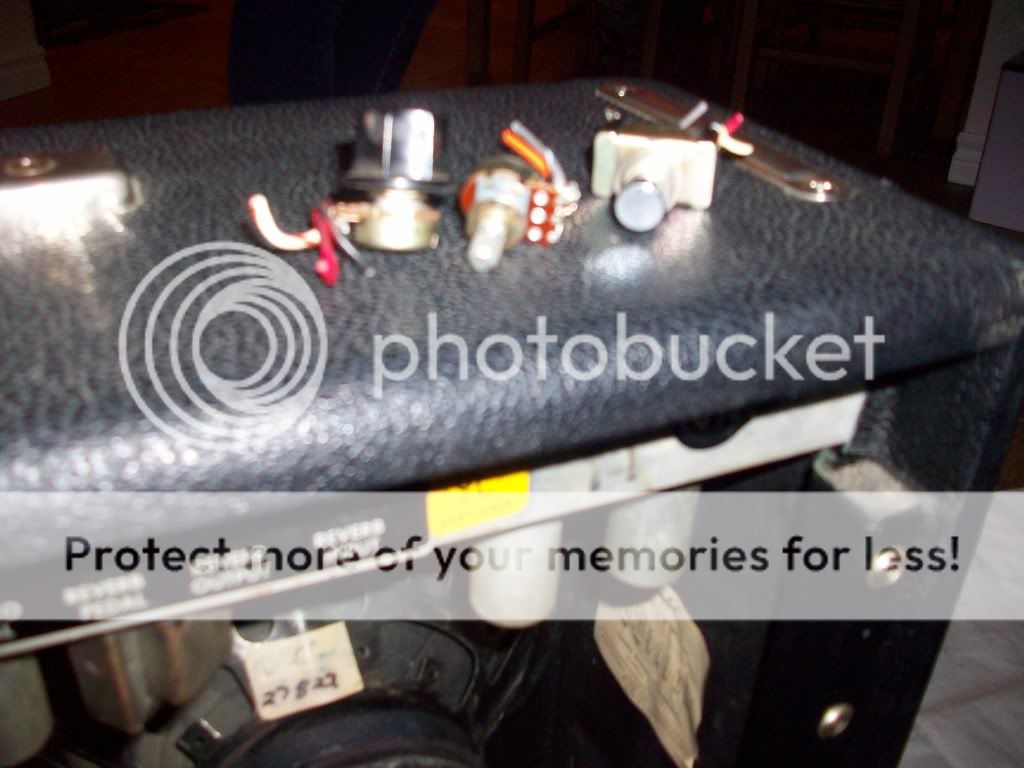

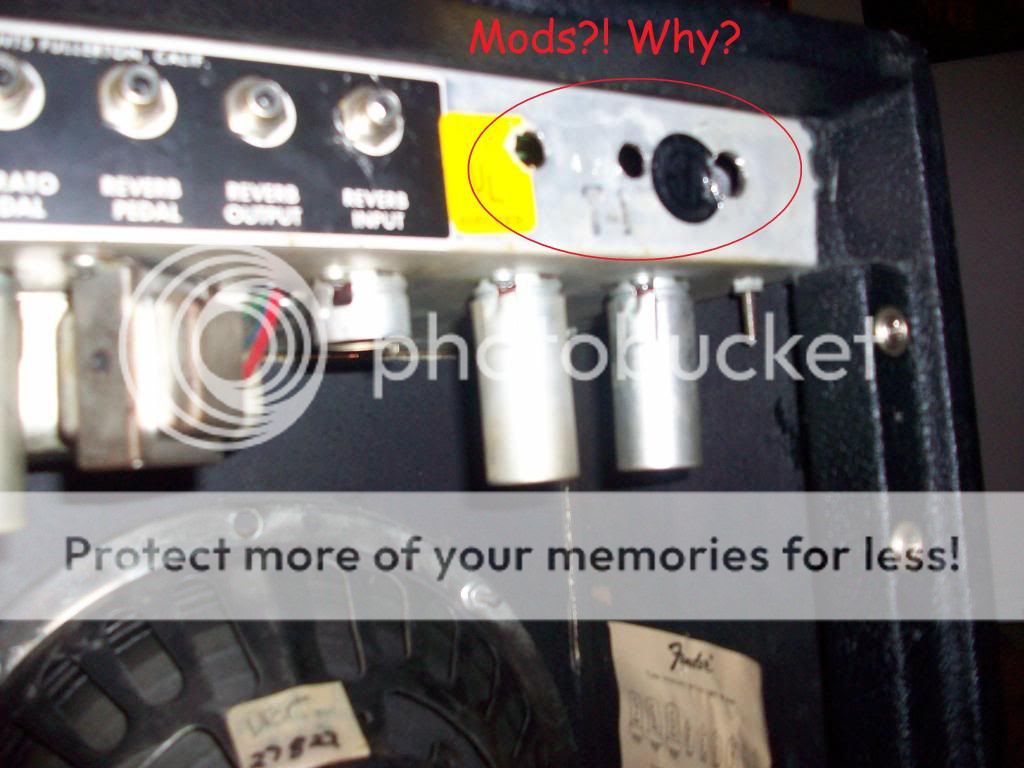

-Three holes in the back (I took off the pots and the 3pdt switch cuz the wires inside were already cut!)

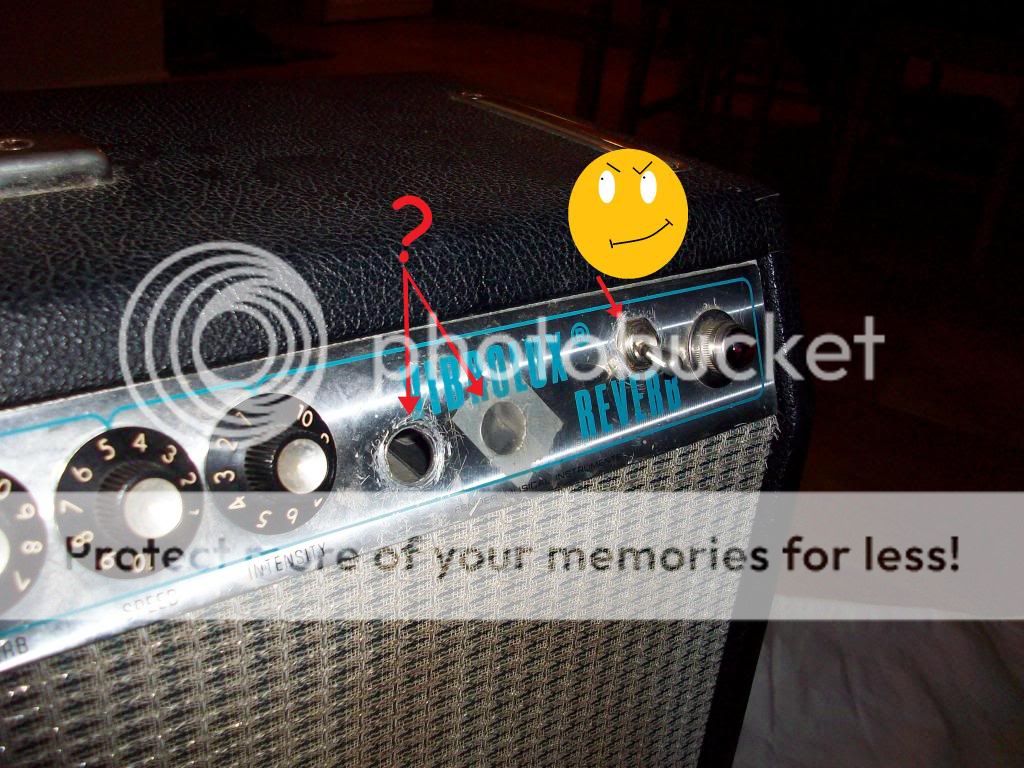

-Two holes in the front (?!?!?!)

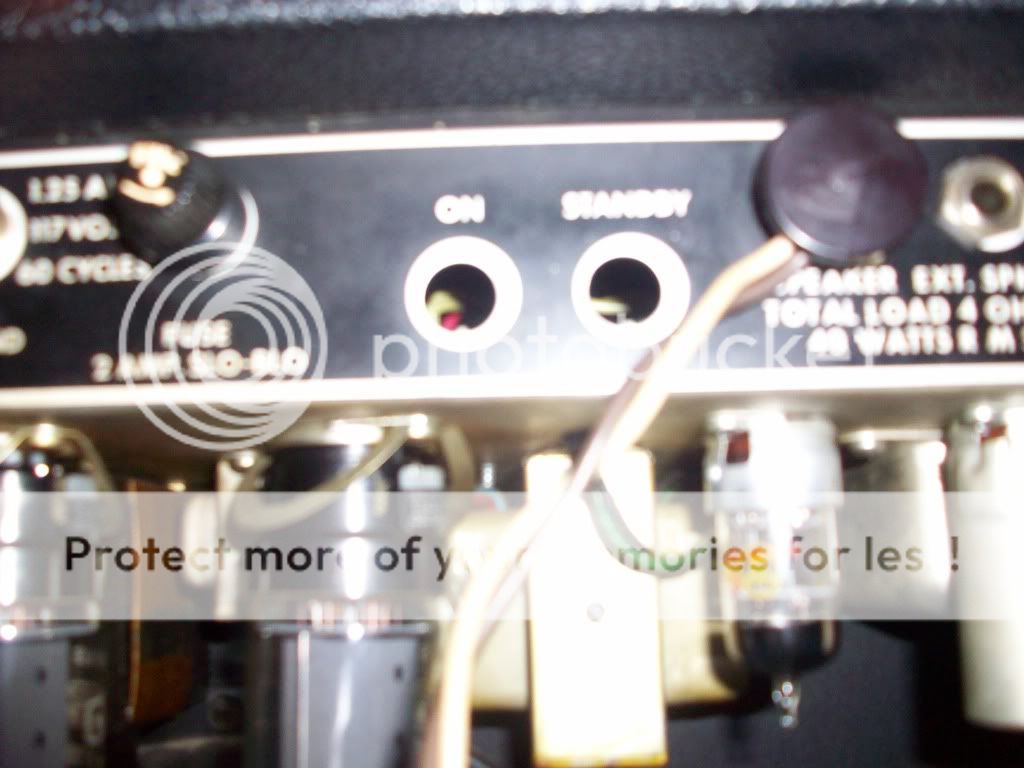

-The ON/OFF and Standby switches are not there anymore... but there's a ON/OFF switch on the front ( :x )

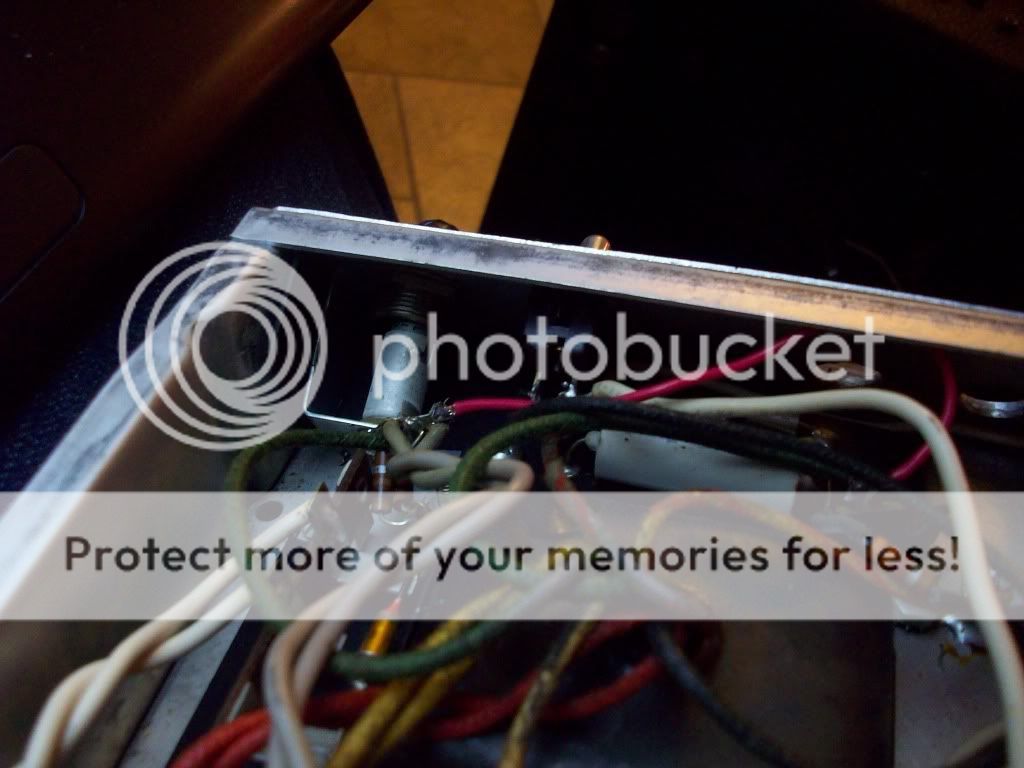

-The wires of the reverb input have been cut

Please note that the clean is awesome! I do not have the footswitch but I think that the vibrato is working.

I want to know:

-How can I ''repair'' the reverb fonction? Wich reverb tank do I have to buy?
-I want to put back the ON/OFF and Standby switches. Wiring diagram?











Top
Profile
Post subject:
Posted: Sat Nov 27, 2010 7:01 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
I hope whomever performed the mods on that amp now works for Hormel......

......BECAUSE HE IS ONE HELLUVA BUTCHER!

:evil: :evil: :evil:

I guessing it's a late 70's model by 40-watt output, removable grill frame, and the cloth color. Ampwares should have the schem for that amp on file (if the site is up and running again) but owing to the amount of damage done I think you'll be better served by finding a qualified amp tech and letting him straighten the mess out. You're stuck with the unauthorized holes in the rear of the chassis but it might be possible to find a replacement silverface front panel and thus conceal the vandalism there. A blackface panel might be easier to locate though. Accutronics makes the correct six-spring tank to restore the reverb. You'll also need the bag for the tank too (I've seen them both available on Ebay).

Best of luck, HTH

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject:
Posted: Sat Nov 27, 2010 10:44 pm
Offline
Hobbyist
Hobbyist

Joined: Wed Oct 31, 2007 12:03 pm
Posts: 76

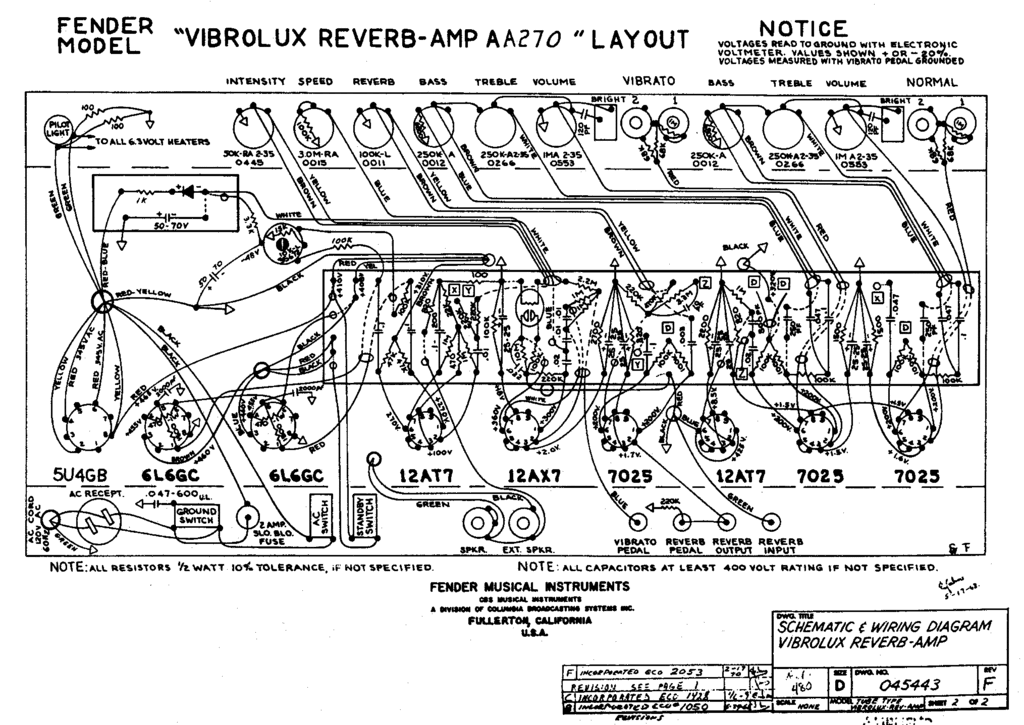

I found a great schematic. I think it would be easy to repair the damages (not myself... but for a tech).
