Post subject: Re Bassman 50-Can I rewire my 4x10 8ohm cab to 4ohms?
Posted: Fri Sep 17, 2010 10:16 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Mon Oct 13, 2008 2:15 pm
Posts: 54
Hi - just managed to pick up a Bassman head. I'm going to use it with Roland Cab, with 4 10" speakers. The Cab is rated 80 watts, 8 ohms, and it's wired in what I think is "parallel-series" configuration. So, going on that, I believe each speaker is also 8ohms. General opinion seems to be that, while running a 4ohm head into an 8ohm cab is safe enough, performance will be compromised, so, my question is; is there a way I can re-wire my cab to draw a 4ohm load?

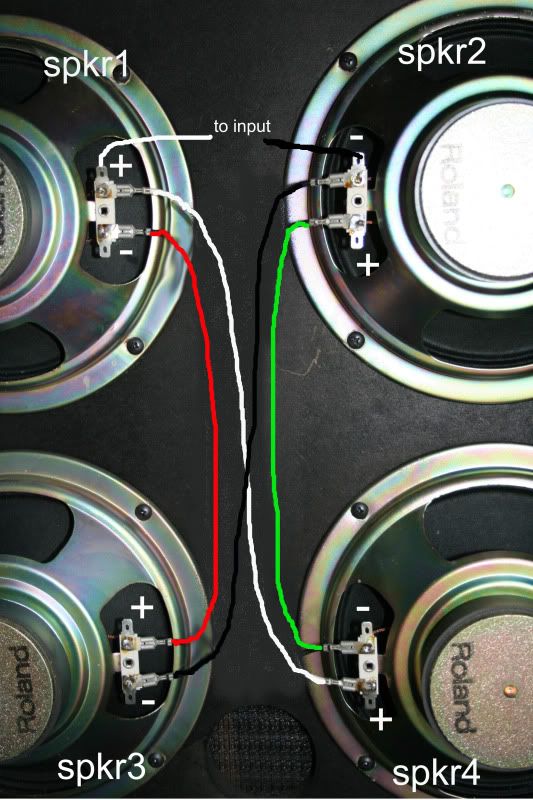

I've drawn some lines to show clearly how it's wired at the moment.
So, is there anyone out there who can tell a rookie how to manage this in language that's as simple as "connect the red one to spkr 1, positive." etc.

Much appreciated.



Top
Profile
Fender Play Winter Sale 2020
Post subject:
Posted: Fri Sep 17, 2010 6:01 pm
Offline
Professional Musician
Professional Musician

Joined: Fri Jun 26, 2009 6:53 pm
Posts: 2252
Location: Harvard IL
That's an interesting wiring scenario. Don't see 4ohms from 4X8ohm speakers. Art

_________________
None of Us are free, if One of Us is chained !


Top
Profile
Post subject:
Posted: Fri Sep 17, 2010 11:49 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Have you determined the impedance of these speakers?

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject:
Posted: Sun Sep 19, 2010 8:59 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Mon Oct 13, 2008 2:15 pm
Posts: 54
No - I know the cab is 80 watts, so I'm guessing they must be 20watts each - no?


Top
Profile
Post subject: Speaker ohms
Posted: Mon Sep 20, 2010 9:57 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
Hi simian,

If your 4 speakers are 8 ohms each, the only way to get 4 ohms would be to only use 2 speakers. Remove the green wire and red wire from speaker 1 and 2. Then remove the black wire from speaker 3, connect it to the - terminal of speaker 1. Then remove the white wire from speaker 4 and connect it to the + terminal of speaker 2. You'll have a 4 ohm load, but only 2 speakers. You might like the sound of 2x10s. :)

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject:
Posted: Tue Sep 21, 2010 7:00 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Mon Oct 13, 2008 2:15 pm
Posts: 54
Thanks Shimmilou - the only problem there is, that leaves me with 2 speakers adding up to 40 watts, I'm using a 50-watt head. I think I might just have to buy/steal/find a new cab.


Top
Profile
Post subject: 4x10 cab wiring
Posted: Tue Sep 21, 2010 7:24 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Tue Jun 29, 2010 1:20 pm
Posts: 9640
Location: Indiana
Yes, you could blow the speakers if you crank up the amp, but limited to half volume you'd be OK. Just remember, if you want 4 ohms, generally you need two speakers (8 ohm each, in parallel), because you can't get 4 ohms from 4 speakers that are 8 ohms. You can use 4 speakers that are 4 or 16 ohms each, and just replace the ones that you have. Using 4 ohm speakers, 2 paralleled pairs, each pair in series with each other, giving 4 ohms. Using 16 ohm speakers, all four in parallel will give 4 ohms. In either case, you can use fairly low wattage speakers (20 watts or more each is plenty), as long as all four are being used with the 50 watt amp. Of course it might be cheaper and easier to just buy a 4 ohm cab, but where's the fun in that? :D

_________________
---> "The amp should be SWITCHED OFF AND UNPLUGGED before you do this!" <---

Por favor, disculpe mi español, no se llega a la práctica con mucha frecuencia.


Top
Profile
Post subject: good amp wiring resource
Posted: Thu Sep 23, 2010 12:51 pm
Offline
Hobbyist
Hobbyist

Joined: Thu Sep 23, 2010 7:55 am
Posts: 4
http://www.svvintageamps.com/speaker.php#question11

this link has a good wiring theory and formulas as well as diagrams.


Top
Profile
Post subject:
Posted: Thu Sep 23, 2010 2:28 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14049
Location: Province de Québec, Canada
very interesting zoodiscmcc. Thamk's
