Post subject: Dual Showman
Posted: Fri Apr 30, 2010 11:21 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Wed Apr 07, 2010 6:54 pm
Posts: 64
I have a Dual Showman head. I am curious what cabnet and speakers would have been original. What combinations were there?

Thanks for your replies.


Top
Profile
Fender Play Winter Sale 2020
Post subject:
Posted: Fri Apr 30, 2010 11:37 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
A 2 x 15 enclosure was the specified cab for the Dual Showman amp.

The "small-box" version used during the BF era was oriented horizontally and measured 24" x 36" x 11½". Shortly before the switch to SF cosmetics (circa early spring of 1967) the box was enlarged to 30" x 45" x 11½" with the orientation changed to vertical. The tilt-back legs were deleted on this cab.

Those "big-box" Dual Showman enclosures that were factory-equipped with JBL D140F bass speakers (an available option at the time) featured a small rectangular port on the lower right side of the baffle board.

HTH

Arjay


Top
Profile
Post subject:
Posted: Sat May 01, 2010 7:24 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Dec 31, 2009 10:34 pm
Posts: 10760
Location: Athens, Greece
Chuck Berry uses BOTH Dual Showman and Dual Showman Reverb.


BTW, for which reason ol' Chuck ran TWO Dual Showman Reverbs connected each other (as shown on the photo below) instead of using a single head/cab set? He found the tone not sufficient enough for his taste?



Top
Profile
Post subject:
Posted: Sat May 01, 2010 9:00 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
chromeface wrote:
Chuck Berry uses BOTH Dual Showman and Dual Showman Reverb.


And this is relevant to this thread because...... :?:

Arjay


Top
Profile
Post subject:
Posted: Sat May 01, 2010 9:47 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Aug 07, 2007 2:19 pm
Posts: 8827
It's not. :? Just start a Chuck Berry equipment thread. I understand threads get hijacked, I'm guilty of it myself from time to time. But man chromeface, this seems to happen all the time with you. Tale, no tail, who asked about tails? Just try to stick to the op's question. The OP didn't ask anything about Chuck Berry or his equipment.

It just being respectful to the OP. Arjay's just being helpful and to the point. He's forgotten more stuff about Fender gear than I ever knew.


Top
Profile
Post subject:
Posted: Sat May 01, 2010 5:28 pm
Offline
Professional Musician
Professional Musician

Joined: Fri Jun 26, 2009 6:53 pm
Posts: 2252
Location: Harvard IL
Hey Chrome, I usually read the original post two or three times, just to make sure that I understand the subject. Then, it's just a matter of whether or not I have any thing of value to add to the conversation, or maybe I'm just curious about the subject. IMO No one here is interested in curtailing your freedom of expression. No one here has that right! We're all just guests at this party. Maybe some pictures of the Dual Showman speaker cabs would be the way to go. This stuff really doesn't bother me, but we need to be considerate of everyone here. The guys are offering guidance, and so am I. Hope some of these words help! Art

_________________
None of Us are free, if One of Us is chained !


Top
Profile
Post subject:
Posted: Sun May 02, 2010 2:02 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Dec 31, 2009 10:34 pm
Posts: 10760
Location: Athens, Greece
Thanks for the advices. :)


Top
Profile
Post subject:
Posted: Sun May 02, 2010 2:10 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Thu Dec 31, 2009 10:34 pm
Posts: 10760
Location: Athens, Greece
63supro wrote:
It's not. :? Just start a Chuck Berry equipment thread. I understand threads get hijacked, I'm guilty of it myself from time to time. But man chromeface, this seems to happen all the time with you. Tale, no tail, who asked about tails? Just try to stick to the op's question. The OP didn't ask anything about Chuck Berry or his equipment.

It just being respectful to the OP. Arjay's just being helpful and to the point. He's forgotten more stuff about Fender gear than I ever knew.


Not necessarily a Chuck Berry equipment thread, but a good reference for an useful discussion.

I too dislike hijacking threads, but I desperately try to post a relevant question to add a nice context to an already existing subject, no else matters....
:evil:


Top
Profile
Post subject:
Posted: Fri May 14, 2010 7:07 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Sat Jan 17, 2009 10:59 am
Posts: 1250
Location: Mississippi
The 1st post in this thread http://www.fender.com/community/forums/ ... hp?t=37084 shows a '69 SF Dual Showman Reverb sitting on its original 2x15 cab

_________________
"I started out with nothing, and still have most of it"


Top
Profile
Post subject:
Posted: Wed May 19, 2010 10:59 am
Offline
Roadie
Roadie
User avatar

Joined: Fri Sep 25, 2009 9:57 am
Posts: 291
Location: Eastern Iowa
If I can figure out how to post it, I have a old picture of my "69 Dual Showman on a 2X15 bottom, and my '61 Strat hung on the front. Cool picture-all I remember about it was My Dad yelling at me to turn it down, and having to take out the backseat of my car to haul it around.

_________________
Life is like a sh*t sandwich. The more bread you have, the less sh*t you have to eat.


Top
Profile
Post subject:
Posted: Wed May 19, 2010 11:37 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
Kinda like this?


I learned to appreciate the advantages of the earlier small-box Showman enclosure after wrestling a big-box cab into the back seat of my mom's '67 Valiant a few times......

:mrgreen:

Arjay


Top
Profile
Post subject:
Posted: Wed May 19, 2010 8:20 pm
Offline
Hobbyist
Hobbyist
User avatar

Joined: Mon Sep 22, 2008 9:01 pm
Posts: 86
Location: Long Island, NY
Retroverbial wrote:

I learned to appreciate the advantages of the earlier small-box Showman enclosure after wrestling a big-box cab into the back seat of my mom's '67 Valiant a few times......

:mrgreen:

Arjay


I didn't know that was physically possible....lol


Top
Profile
Post subject:
Posted: Thu May 27, 2010 11:43 pm
Offline
Hobbyist
Hobbyist

Joined: Tue May 13, 2008 12:23 am
Posts: 18
The first Showmans ( those beautiful blonds ) were horizontal cabs that had either a 12" or 15" speaker, which could be upgraded to JBL's. The Double Showman, with 2 x 15' speakers, either D-130 or D-140 JBL's, were changed to Dual Showman in 63' ( the blackface era ). The large, ported cabinet came along in 67'. At that time, the bass payer in my high school blues band used a Dual Showman head with the smaller box Dual Showman bottom loaded with two JBL D-140's. Sounded great to use. Two cabinets would have been better though :)
The first group I saw using Showmans were The Beach Boys. Brian's were loaded with two JBL 15's.

http://www.youtube.com/watch?v=k1FaflUn4Co

As an aside, Carl was using what appears to be a Bandmaster and Al, a flip top Ampeg? Both had the stand alone Fender Reverb units


Top
Profile
Post subject:
Posted: Fri May 28, 2010 12:16 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26417
Location: Tombstone Territory
The only "big-box" Dual Showman cabinets (30" x 45" x 11½") to be factory-ported were those that were special-ordered with D140F bass drivers, which were a no-cost option.

As well, the first "formal" Dual Showman (where "Dual" was added to the front-panel nomenclature) was introduced in early 1967, to coincide with the introduction of the "big box" enclosure.

Prior to that the only way to distinguish between a 1 x 15 Showman head and that intended for use with the 2 x 15 cab was to check the part number on the OT. The single-speaker head (8Ω secondary) carried the part number "125A30A" on its tranny while the "dual-speaker" (4Ω secondary) model was stamped "125A29A".

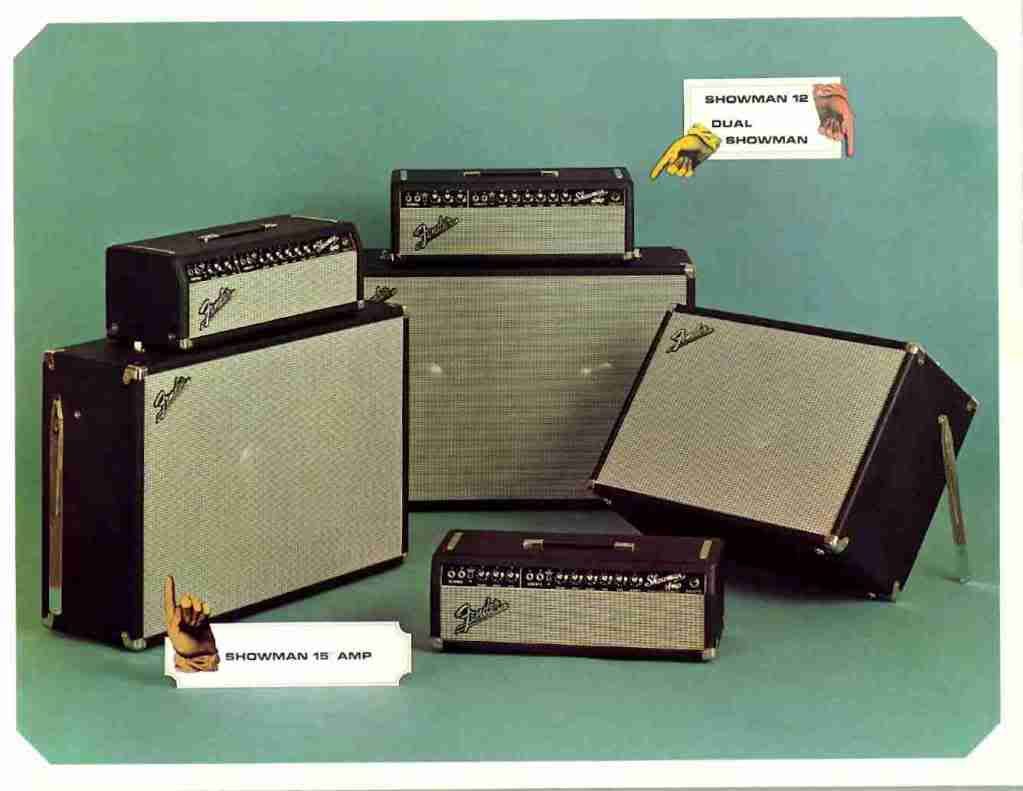

Here are the Showman Amps as shown in the 1965-66 Fender catalog......


Note the lack of the word "Dual" on the 2 x 15 version.

HTH

Arjay


Top
Profile
Post subject:
Posted: Fri May 28, 2010 12:20 am
Offline
Hobbyist
Hobbyist

Joined: Tue May 13, 2008 12:23 am
Posts: 18
yep, the middle one was what my bass player used, along with an early 60's precision bass. What a sound!
