Post subject: Re: '59 Fender Deluxe 5E3 problem.
Posted: Tue Mar 26, 2019 5:46 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14045
Location: Province de Québec, Canada
jbarrus wrote:
Thanks to everyone for your input. I'm glad I found this forum. I've been perusing YouTube and watching loads of videos. I don't want to do anything to mess this up. I've had this amp for 10 years and barely used it. My teenage son had decided he wants to play the electric guitar and that has finally given me the impetus to get it into shape. I'll update as I progress or with new questions.

Thanks again!


" My teenage son had decided he wants to play the electric guitar and that has finally given me the impetus to get it into shape. "

:shock:
Speaker paper cone could be fragile. A broken speaker may cut value in half (?)

Buy it a low budget amp, store this $5k amp in a safe place, It is as piece of history


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: '59 Fender Deluxe 5E3 problem.
Posted: Tue Mar 26, 2019 5:52 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14045
Location: Province de Québec, Canada
upnorth2 wrote:
Do some research and find a good, reputable tech. The amp is worth it. I'd also completely bypass that ground switch.

UN


Keep all old parts, ask him first.


Top
Profile
Post subject: Re: '59 Fender Deluxe 5E3 problem.
Posted: Tue Mar 26, 2019 8:46 am
Offline
Hobbyist
Hobbyist

Joined: Tue Mar 19, 2019 9:48 am
Posts: 10
I'm going to start with eliminating the ground switch. I've looked at a couple of schematics and at the wiring in the photo. Am I understanding this correctly?

I have a capacitor discharge tool coming on Thursday. I won't start working on anything until I make sure I'm safe.

ImageGround Switch Rewire by John Barrus, on Flickr

_________________
-JB-


Top
Profile
Post subject: Re: '59 Fender Deluxe 5E3 problem.
Posted: Tue Mar 26, 2019 9:25 am
Offline
Hobbyist
Hobbyist

Joined: Tue Mar 19, 2019 9:48 am
Posts: 10
If my 6v6 tuvbes are all black inside (I can't see into them) does that mean they are failing? If I tap them I get some microphonics.

_________________
-JB-


Top
Profile
Post subject: Re: '59 Fender Deluxe 5E3 problem.
Posted: Tue Mar 26, 2019 9:55 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

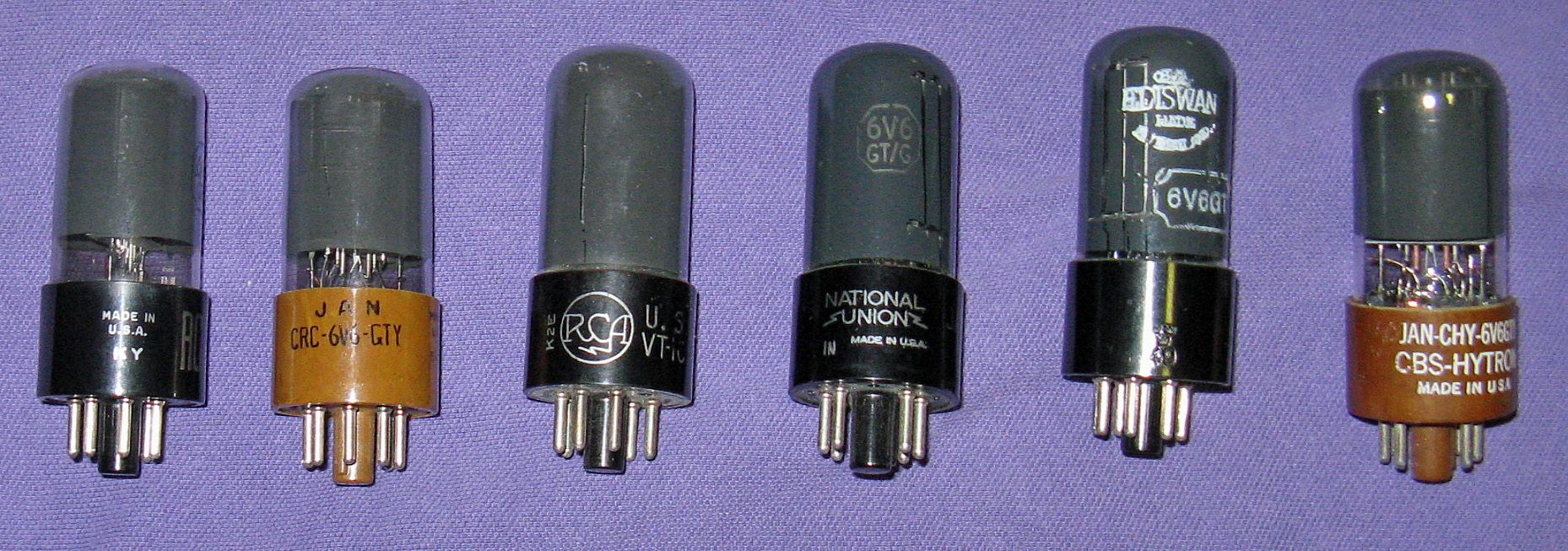

No. Some older tubes have either black painted inner glass surface or graphite coating. The graphite is usually seen on mil spec tubes (ostensibly to help block EMF transmission).




Top
Profile
Post subject: Re: '59 Fender Deluxe 5E3 problem.
Posted: Tue Mar 26, 2019 11:57 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14045
Location: Province de Québec, Canada
jbarrus wrote:
I'm going to start with eliminating the ground switch. I've looked at a couple of schematics and at the wiring in the photo. Am I understanding this correctly?

I have a capacitor discharge tool coming on Thursday. I won't start working on anything until I make sure I'm safe.
r


Use a resistor 1K ohms or almost any value

How to wire ; https://www.youtube.com/watch?v=3cX-DwRWIMU

Image[url=https://flic.kr/p/TbRNHS]


Top
Profile
Post subject: Re: '59 Fender Deluxe 5E3 problem.
Posted: Tue Mar 26, 2019 12:01 pm
Offline
Roadie
Roadie

Joined: Sat Dec 13, 2014 7:34 am
Posts: 245
Solder a ring terminal on the ground for connecting to the PT bolt.

UN


Top
Profile
Post subject: Re: '59 Fender Deluxe 5E3 problem.
Posted: Tue Mar 26, 2019 1:18 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14045
Location: Province de Québec, Canada
This is the wiring you must do

Power cable Black wire are the hot side of wall voltage.
White wire ; the cold side or neutral


Image[url=https://flic.kr/p/RyL1wr]


Top
