Post subject: Fender Twin Reverb 1975 ( hum)
Posted: Mon Jan 14, 2019 9:12 am
Offline
Hobbyist
Hobbyist

Joined: Mon Jan 14, 2019 8:18 am
Posts: 5
Hello to everyone, i just restore from scratch two amps a bassman 100 and a twin reverb, however i got a slight issue with the twin, it has a noticeable hum, i have to said that i proceed to restore this amp because initially got that problem ( i believed that filter caps where an issue) i changed all you name it, but its still there, with both amps i tried to perform more an AB763 circuits, in the bassman all performed awesome and its dead silent but not in the Twin, any help of where should i look would be great, thanks.


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Fender Twin Reverb 1975 ( hum)
Posted: Mon Jan 14, 2019 12:54 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
You try cleaning all the contacts (sockets, tube pins, input jacks, output jacks, reverb connections) with a good contact cleaner?

I like Deoxit D100. :)

https://www.amazon.com/CAIG-LABORATORIE ... eoxit+d100


Top
Profile
Post subject: Re: Fender Twin Reverb 1975 ( hum)
Posted: Mon Jan 14, 2019 1:55 pm
Offline
Aspiring Musician
Aspiring Musician

Joined: Thu Dec 12, 2013 2:54 pm
Posts: 618
Welcome to the forum.

Besides what BMW2002Ti mentions, many things can cause hum, have you tried isolating the hum to a particular section of the amp?

Pictures of the inside of the chassis would be helpful.

You mention replacing filter caps, but many who post here replace filter caps, but not bias supply caps or cathode bypass caps.

Lead dress can also cause hum.

You also mention converting to AB763, did you also convert the bias balance control to bias adjust?

Is this an export version of this amp?

These are reasons why pictures would be helpful. Troubleshooting by internet is difficult, which is why details are important.

Regards,
Vinyl

_________________
"Where confusion abounds, there's money to be made."


Top
Profile
Post subject: Re: Fender Twin Reverb 1975 ( hum)
Posted: Mon Jan 14, 2019 2:57 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14045
Location: Province de Québec, Canada
Picture is a must to help you.

These amps are a real rats nest :shock:
Is the hum balance pot working ? Read ohms between center lug and side lugs. 100 ohms each side is good
Replace all tubes's plate resistors.

A Twin Reverb fix by a friend working as a amp tech ; same issue than yours

Imagei

Hum balance pot not working ; replace by two 100 ohms resistors


[url=https://flic.kr/p/2edEVRH]Image
IMG_0850


Top
Profile
Post subject: Re: Fender Twin Reverb 1975 ( hum)
Posted: Mon Jan 14, 2019 3:33 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory
Try cleaning all four of the input jacks, either with De-Oxit and a Q-tip or with some fine crokus cloth......the tip, the ground collar, and the shorting contacts (especially the latter). These components need to be totally corrosion-free for noiseless operation.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Fender Twin Reverb 1975 ( hum)
Posted: Mon Jan 14, 2019 4:28 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14045
Location: Province de Québec, Canada
I use burnishing tool for cleaning these contact. Paper money work fine too. Yes paper money.
One dollar bill for a cheap job, one hundred bill for a better job :lol:

Cleaning "tool" must be very thin if not, you may damage contact = noise for ever.


Top
Profile
Post subject: Re: Fender Twin Reverb 1975 ( hum)
Posted: Mon Jan 14, 2019 4:40 pm
Offline
Hobbyist
Hobbyist

Joined: Thu May 26, 2016 5:40 pm
Posts: 87
Those pics look like a concert series Fender ... ???

Here is a gut pic of a 75 Twin (and a really nice sounding one at that)



Last edited by pcalugaru on Mon Jan 14, 2019 4:42 pm, edited 1 time in total.

Top
Profile
Post subject: Re: Fender Twin Reverb 1975 ( hum)
Posted: Mon Jan 14, 2019 4:41 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory
stratele52 wrote:
One dollar bill for a cheap job, one hundred bill for a better job

:mrgreen:
Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Fender Twin Reverb 1975 ( hum)
Posted: Mon Jan 14, 2019 6:49 pm
Offline
Hobbyist
Hobbyist

Joined: Mon Jan 14, 2019 8:18 am
Posts: 5
Thanks everyone to reply, all mention before its done, ill post pics, see i just desolder all the amp, and replace almost every component
All caps and filter caps
220k Resistors in dogwouse
All the filament wiring , all pots, and tube wirings
It has 2 new 100ohm to pilot
Cleaned all sockets, jacks, pots
I sure did the bias adjustment mod all that resistors in the circuit new
All resistors in power tubes new

Its like a new amp

The thing that concern me its the amp got that 120 cycle kinda hum when i got it, since i got the time i went full restore with it, also the only thing i found different from schems it was the way the output jacks were wired, it has a resistor to the ext jack coming from the center leg of the master volume, can anyone confirm this is correct, or someone might tried something weird with this amp? And might be the culprit
Forgot to mention that i tried different new tubes with it also

Heres a test of the hum


Top
Profile
Post subject: Re: Fender Twin Reverb 1975 ( hum)
Posted: Mon Jan 14, 2019 8:33 pm
Offline
Hobbyist
Hobbyist

Joined: Mon Jan 14, 2019 8:18 am
Posts: 5
Update! It appears i was just right, i installed the output and ext speaker jacks plain stock from a layout, without that cap that I mentioned and there you go the amp its dead silent as the bassman 100, so it appears i just have two new amps! Thanks everyone!


Top
Profile
Post subject: Re: Fender Twin Reverb 1975 ( hum)
Posted: Mon Jan 14, 2019 9:35 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
1.) Did you change the electrolytic cap(s) in the bias supply?

2.) The resistor from the speaker to the MV volume pot is part of the Global Negative Feedback circuit, in this amp. Sometimes, those resistors and caps are on the circuit board. Sometimes, they are solder right to the speaker jacks.

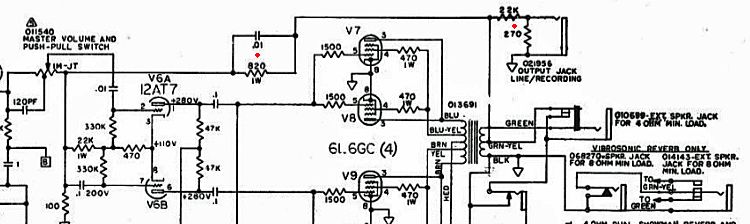

Some version of this:
