Post subject: Re: Vintage Circuit?
Posted: Sun May 14, 2017 1:26 pm
Offline
Professional Musician
Professional Musician

Joined: Tue Nov 27, 2012 6:56 am
Posts: 1677
Location: Coastal Bend, Tx.
Here is the amp wares schematic/layout if you need it Mbeaubs.
http://ampwares.com/schematics/princeton_5f2a.pdf


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Vintage Circuit?
Posted: Tue May 16, 2017 9:10 am
Offline
Roadie
Roadie

Joined: Sat Dec 13, 2014 7:34 am
Posts: 245
Mbeaubs wrote:
Wow, lots of information for a rookie like me. I will enlist a professional to assist in service, although I may get brave, buy a soldering iron, and give a go with all of your assistance! .


If you decide to tackle this yourself, PLEASE make up one of these for draining the 300+ DC volts that are hangin' around in those filter caps. I've used this one for years. Two sticks, some wire, a couple of alligator clips, a little tape and a 10K resistor. It's a good idea to mark the two alligator clips with green and red tape. Then you can proceed in the following order.

FIRST - Hook the clip that's NOT taped to the stick to a good ground (chassis, etc.)

SECOND - DO NOT USE YOUR BARE FINGERS TO ATTACH THIS CLIP! Using the spare stick to open the other clip, attach it to pin one of V1. This will drain the caps in a few minutes (in your case) and make the amp safe to work on.

BUT, and this is a big but, (no pun intended) always check the voltages with a meter prior to sticking your hands in there. If you're not comfy with this, bring it in to someone who is.

Also, remember to remove this prior to plugging the amp back in and turning it on.

UN



Top
Profile
Post subject: Re: Vintage Circuit?
Posted: Wed May 17, 2017 5:59 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

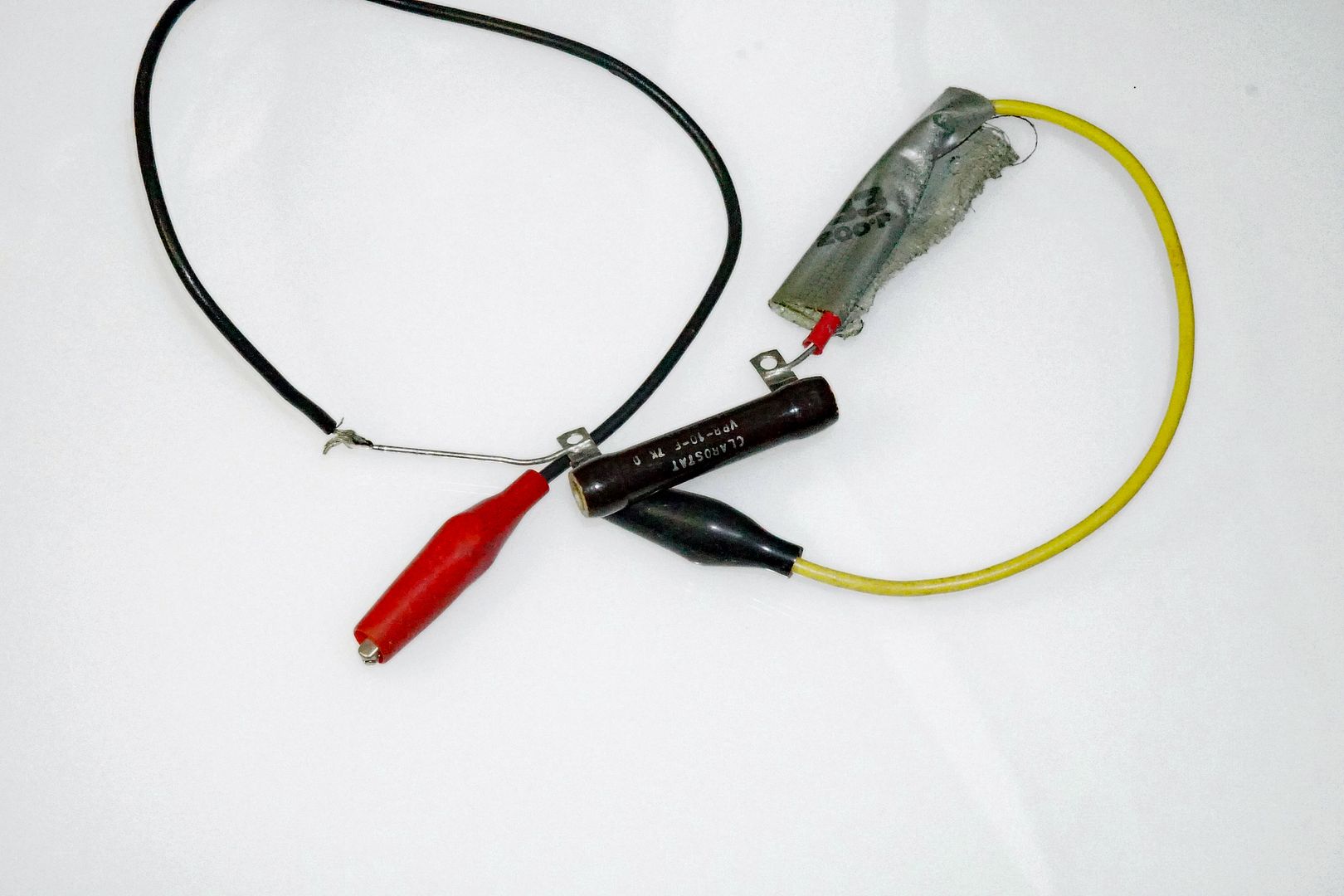

This is what I use to drain the caps. A 5-watt, 7k-ohm resistor inline with the clips. With the resistor, you don't get a spark, from sudden discharge. The more resistance the slower the drain time. I've used anything from 1K-ohms to 10k-ohm bricks. :)




Top
Profile
Post subject: Re: Vintage Circuit?
Posted: Wed May 17, 2017 10:15 am
Offline
Professional Musician
Professional Musician

Joined: Tue Nov 27, 2012 6:56 am
Posts: 1677
Location: Coastal Bend, Tx.
Discharging is imperative prior to working inside the chassis.
I keep a ground strap installed at all times after discharging unless I'm taking live voltage/current readings to prevent caps from re-forming charges(usually near the capacitance value in volts over time).
I prefer Mueller #2 clips w/ rubber boots connected to a spaghetti type 18 gauge wire w/o any resistance for the ground strap.
I use a 3watt 470k in-line resistor for a quick discharge.
Safety first has been imprinted in my cranial circuit.


Top
Profile
Post subject: Re: Vintage Circuit?
Posted: Fri May 19, 2017 4:59 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Sat Jul 02, 2016 5:00 am
Posts: 49
Hey guys, after further thought I think I am going to bring it in to a local amp tech. Dammit Jim, I'm a plumber not an electrical engineer! :shock:

_________________
Beaubs


Top
Profile
Post subject: Re: Vintage Circuit?
Posted: Fri May 19, 2017 8:12 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory
Mbeaubs wrote:
Dammit Jim, I'm a plumber not an electrical engineer! :shock:


You KNOW what he's gonna tell you.

Scotty......I need more power!

:mrgreen:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Vintage Circuit?
Posted: Fri May 19, 2017 10:53 am
Offline
Hobbyist
Hobbyist

Joined: Sat May 06, 2017 7:54 pm
Posts: 62
sfceric64 wrote:
Discharging is imperative prior to working inside the chassis.
I keep a ground strap installed at all times after discharging unless I'm taking live voltage/current readings to prevent caps from re-forming charges(usually near the capacitance value in volts over time).
...


In my 40 some odd years experience, I've only observed bounceback in filter capacitors ranging in millivolts. No need to keep a ground strap installed.


Top
Profile
Post subject: Re: Vintage Circuit?
Posted: Fri May 19, 2017 1:46 pm
Offline
Professional Musician
Professional Musician

Joined: Tue Nov 27, 2012 6:56 am
Posts: 1677
Location: Coastal Bend, Tx.
Quote:
In my 40 some odd years experience, I've only observed bounceback in filter capacitors ranging in millivolts. No need to keep a ground strap installed.
Whatever works best for you, I've seen 14-16 volts w/in a few minutes. I prefer the ground.


Top
Profile
Post subject: Re: Vintage Circuit?
Posted: Fri May 19, 2017 8:26 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory
sfceric64 wrote:
I prefer the ground.


+1

That's what the Air Force teaches in tech school and the Army in AIT.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Vintage Circuit?
Posted: Sat Jul 22, 2017 6:34 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Sat Jul 02, 2016 5:00 am
Posts: 49
So, I had time to pull the chassis this morning and I looked at all the wires. They all seem to be soldered solidly but some of the points seem to be thin. I did see that the circuit board itself, attached to the chassis is actually touching the chassis on one side. That seems odd to me. It would seem that there needs to be some sort of stand off between the circuit board and the chassis? I have not touched anything inside, just reviewed - I don't want to die. I'd send pics but I don't want to suffer through photo bucket. I prolly will bring in to a tech.

_________________
Beaubs


Top
Profile
Post subject: Re: Vintage Circuit?
Posted: Sat Jul 22, 2017 9:49 am
Offline
Professional Musician
Professional Musician

Joined: Tue Nov 27, 2012 6:56 am
Posts: 1677
Location: Coastal Bend, Tx.
Mbeaubs, without the original schematic or converting the amplifier to a Fender spec amplifier schematic and having little experience. I would recommend finding a tech to look it over for you.
As far as the circuit board touching the chassis, that may be ok. Most have some standoff or backing under the board. As long as it has a three prong power cord properly grounded, you should be ok. When probing around use a chopstick, plastic pen case, etc(no pencils-lead is a good conductor of electricity) unless you know there is no charge.


Top
Profile
Post subject: Re: Vintage Circuit?
Posted: Sat Jul 22, 2017 3:20 pm
Offline
Roadie
Roadie

Joined: Sat Dec 13, 2014 7:34 am
Posts: 245
I may be missing something here but is the cathode bypass cap for V1 even an electrolytic in the photo?

UN


Top
Profile
Post subject: Re: Vintage Circuit?
Posted: Sat Jul 22, 2017 3:26 pm
Offline
Professional Musician
Professional Musician

Joined: Thu Aug 07, 2014 3:25 pm
Posts: 1023
The hum you describe is likely coming from the preamp circuit. The changing volume with more hum nails it.
First thing is to try a different preamp tube.
One thing to check is that the ground on the rightmost filter cap is not connected to the ground with the rest of them. It should be grounded to the brass strip close to the volume control or input jack.

The grounds of the main caps should have a wire to where the red/yello wire is grounded. Don't just use the chassis for ground paths. The brass strip should have a wire to ground as well.

The cathode cap does appear to be a poly. It will limit bass, but is more articulate

For best tone and more power, use a genuine Fender output transformer. They are rated for 8 watts, not 5.


Top
Profile
Post subject: Re: Vintage Circuit?
Posted: Sun Jul 23, 2017 6:46 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Sat Jul 02, 2016 5:00 am
Posts: 49
Poked around with a stick. Also put in a 5751 in place of the 12ax7. No change in hum, no sparks, no audible changes, scratchiness, weird sounds or changes. I am still alive.

_________________
Beaubs


Top
Profile
Post subject: Re: Vintage Circuit?
Posted: Mon Jul 24, 2017 4:53 am
Offline
Hobbyist
Hobbyist
User avatar

Joined: Sat Jul 02, 2016 5:00 am
Posts: 49
Chassis is going in today to be serviced. I'll update on the issues / outcome.

_________________
Beaubs


Top
