Post subject: Re: New old amp
Posted: Wed Mar 29, 2017 11:05 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory
BMW2002Ti wrote:
Thanks, for your thoughts and experiences with this and other vintage Gibson amps. Found this site with photos of another person's restoration.

:mrgreen:


http://www.welcomebackradio.com/ga15rvtupdate.htm


The Celestion Gold alnico is a definite upgrade over the anemic OEM speaker!

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: New old amp
Posted: Tue Apr 04, 2017 9:52 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Well, the Gibson Explorer amp came today. It was WELL packed. Like it could have withstood one of those "bunker buster" bombs. :lol:

It's a heavy amp, for its wattage. More like a DR weight (nearly 40 pounds). Versus the PR weight of around 25 pounds. Part of extra weight is prolly the composite fiberboard construction. 3/4-inch thick stuff. Anyhow, early photos. Will get into amp's guts later tomorrow. Note the Tone Tubby Humbolt 10-inch alnico speaker replacement.




Top
Profile
Post subject: Re: New old amp
Posted: Tue Apr 04, 2017 10:30 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory
BMW2002Ti wrote:
Part of extra weight is prolly the composite fiberboard construction. 3/4-inch thick stuff.


+1

It's built like the early Ampegs from the '60s.

Looks to be in near-pristine condition, congrats on an excellent score.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: New old amp
Posted: Wed Apr 05, 2017 12:08 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Photo of circuit. Looks like previous owner replaced PSU caps with JJ dual section caps. And did some other seemingly interesting mods. Will listen to amp tomorrow and decide next course, if any.



Top
Profile
Post subject: Re: New old amp
Posted: Wed Apr 05, 2017 3:08 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory
You can sure tell that Leo's trained cadre of señoritas didn't wire that thing.

What a mess!

:lol:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: New old amp
Posted: Wed Apr 05, 2017 4:09 am
Offline
Hobbyist
Hobbyist

Joined: Sat Jan 21, 2017 8:39 am
Posts: 39
I totally dig that convenient bracket for storing the footswitch!


Top
Profile
Post subject: Re: New old amp
Posted: Wed Apr 05, 2017 6:35 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Retroverbial wrote:
You can sure tell that Leo's trained cadre of señoritas didn't wire that thing.

What a mess!

:lol:

Arjay


The best thing to do with these truly point-to-point messes (and I've seen hi-fi amps that used NO circuit board or tag board) --- is replace one component at a time. It's so easy to reverse polarity!

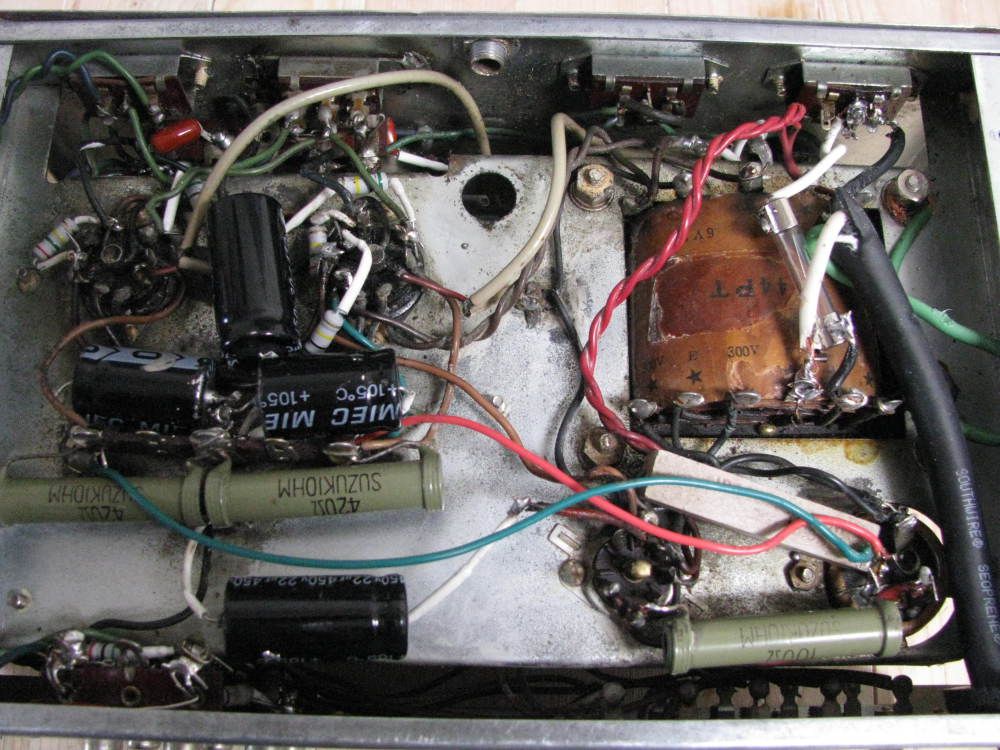

Check out this mess. Nytone amp of the 1960s. Like the way the fuse is soldered in place? :oops:



Stoopy wrote:
I totally dig that convenient bracket for storing the footswitch!


The seller said not to use this (as is) ---- if you are going to haul amp around. It's not that secure and can take some tubes out, while you are bouncing down the road. I'm gonna look into securing the pedal better, so holder can be used.

:D


Top
Profile
Post subject: Re: New old amp
Posted: Wed Apr 05, 2017 6:59 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory
BMW2002Ti wrote:
I'm gonna look into securing the pedal better, so holder can be used.


A strip or two of velcro might be useful......

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: New old amp
Posted: Wed Apr 05, 2017 1:38 pm
Offline
Professional Musician
Professional Musician

Joined: Tue Nov 27, 2012 6:56 am
Posts: 1677
Location: Coastal Bend, Tx.
Military minds think alike. 100mph tape-na, Velcro-that'll get it done :) .
Really nice looking Gibson. As long as its quiet, the wire is what it is.


Top
Profile
Post subject: Re: New old amp
Posted: Wed Apr 05, 2017 8:22 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Started to dig into amp.

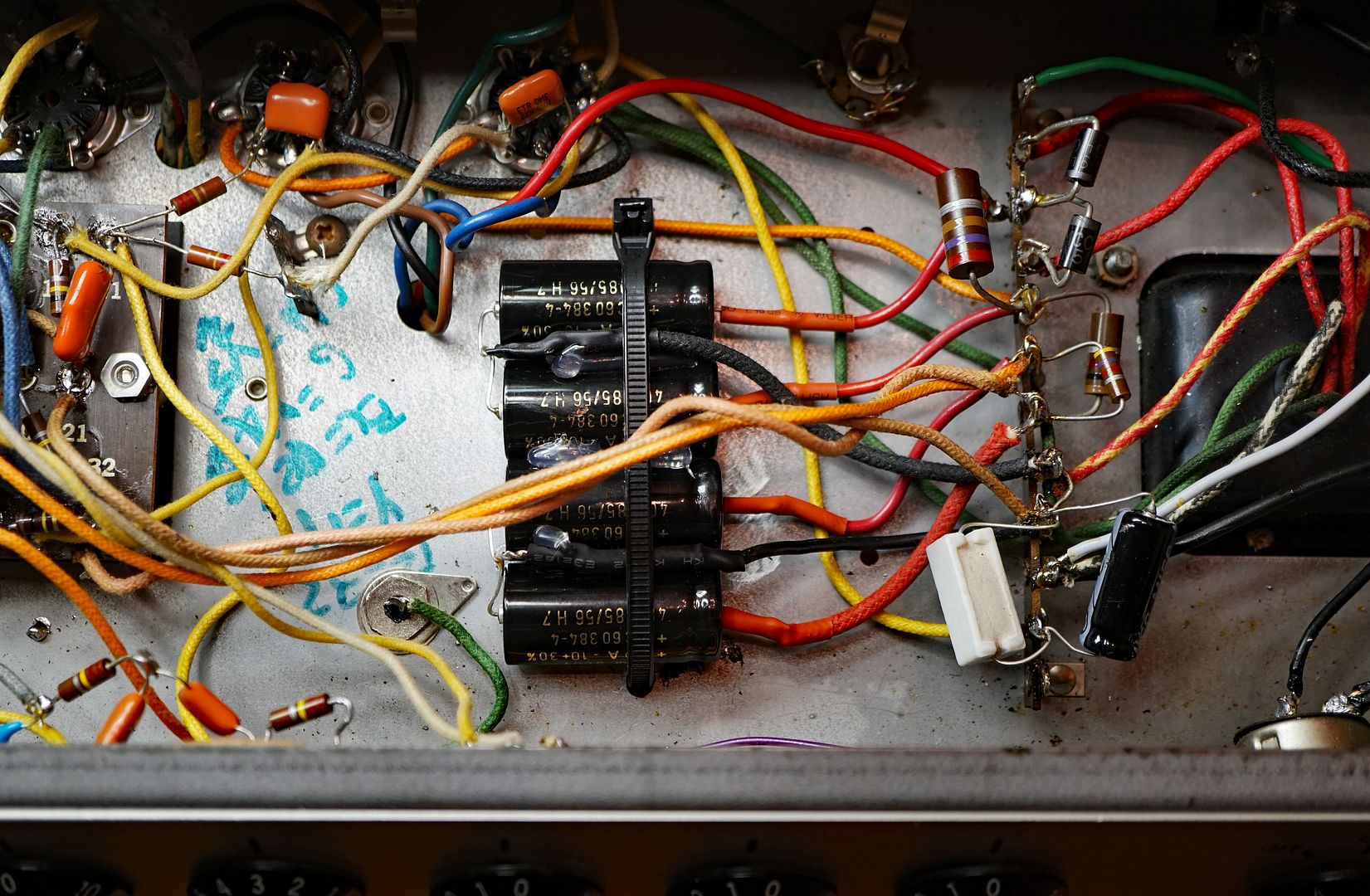

Old cap cans removed.


New F&T.



Top
Profile
Post subject: Re: New old amp
Posted: Thu Apr 06, 2017 6:35 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Had to order some parts. Of course, Gibson uses completely different value resistors in their PSU and cathode-tied networks, than Fender. :lol:

Someone has modified this amp. Cathode network off EL84 is different than stock. Some other minor voicing changes. And the interstage transformer looks to be bypassed. Will try amp out, as is, with new PSU caps. See how it sounds.


Top
Profile
Post subject: Re: New old amp
Posted: Wed Apr 12, 2017 1:49 pm
Offline
Professional Musician
Professional Musician

Joined: Tue Nov 27, 2012 6:56 am
Posts: 1677
Location: Coastal Bend, Tx.
Any progress?


Top
Profile
Post subject: Re: New old amp
Posted: Wed Apr 12, 2017 5:37 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Parts are on their way. I get most of my resistors (Mills WW and NOS AB) from Parts Connexion, in Canada. They are great, but... land mail from them is always slow. Maybe, by next week.

:fingerscrossed: :)


Top
Profile
Post subject: Re: New old amp
Posted: Wed Apr 12, 2017 7:57 pm
Offline
Professional Musician
Professional Musician

Joined: Tue Nov 27, 2012 6:56 am
Posts: 1677
Location: Coastal Bend, Tx.
Yup, that border transition in Chicago is always busy.


Top
Profile
Post subject: Re: New old amp
Posted: Mon Apr 17, 2017 6:38 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Got most supplies today. Started replacing parts in PSU. Put in new caps, UF5408 diodes, and wire-wound resistors.

Before:


After:



Top
Profile
