Post subject: Re: Fender Pro Amp 1961 - thoughts?
Posted: Wed May 25, 2016 5:17 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 14, 2013 4:41 pm
Posts: 764
Location: Sydney. Australia
Its with couriers ..


Just bought it, couldn't resist ... !


:mrgreen:


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Fender Pro Amp 1961 - thoughts?
Posted: Wed May 25, 2016 6:18 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Congrats! I think you will love this amp. The soldering and layout work of brown era amps is exceptional.

P15N? Mine came with an OEM square magnet CTS 15-inch (with hole in cone). :)

The P15N is a good speaker. The JBL D130F is an amazing speaker. I had it reconed at Orange County Speakers, in CA. Very warm, smooth sounding. Not as in-your-face as some amps I heard which had D120F in them. Could be the amps, themselves. Recent amps that I've heard with the JBL 12-inch were Twin Reverb and a Deluxe Reverb. Both, seemed voiced on the bright side.

:)


Top
Profile
Post subject: Re: Fender Pro Amp 1961 - thoughts?
Posted: Wed May 25, 2016 3:42 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 14, 2013 4:41 pm
Posts: 764
Location: Sydney. Australia
Not really sure what model speaker is in it. Will actually test and see how it performs, but I'm not a great fan of old speakers. Leo's inventions were 3 steps ahead of the speakers available at the time, imo.

I had a pair of JBL D120F (orange) and didn't like them much, let alone the abnormal weight.

Is this the PT that I need for 230V?
http://store.triodestore.com/40-18094.html

:)


Top
Profile
Post subject: Re: Fender Pro Amp 1961 - thoughts?
Posted: Wed May 25, 2016 3:58 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Yeah, the D120F is quite a different beast from the D130F. In my brief experience with the D130F. I have quite a bit of experience with JBL 15-inch studio and hi-fi speakers. Most have a richer tone than their 12-inch home and studio models, for some reason.

I have never tried the Weber 15-inch alnico. But, I bet it is very good.

As for the tranny, yes the PDF file shows the wiring for 240VAC 50/60Hz.

http://www.classictone.net/40-18094.pdf

Here's the Hammond 240/50Hz replacement for the Pro:

http://www.hammondmfg.com/pdf/EDB291EEX.pdf


Top
Profile
Post subject: Re: Fender Pro Amp 1961 - thoughts?
Posted: Wed May 25, 2016 11:54 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 14, 2013 4:41 pm
Posts: 764
Location: Sydney. Australia

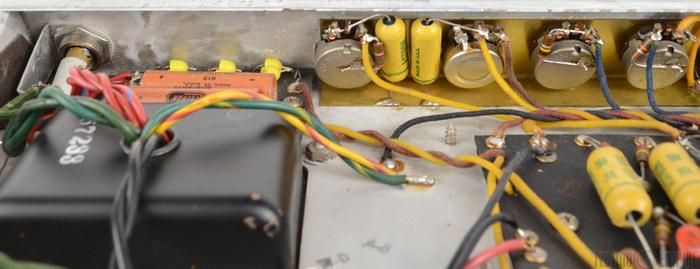

Strange coding on the PT ...!??



Top
Profile
Post subject: Re: Fender Pro Amp 1961 - thoughts?
Posted: Thu May 26, 2016 12:31 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 14, 2013 4:41 pm
Posts: 764
Location: Sydney. Australia

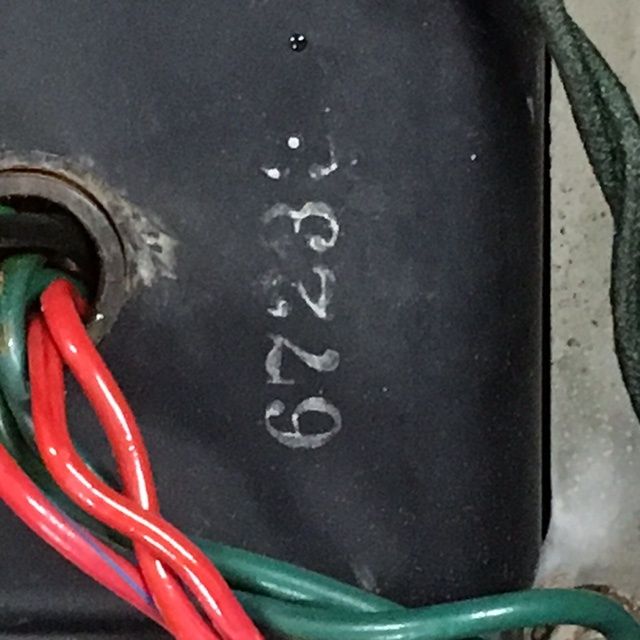

No codes on the side where BF amps are marked ..?! :roll:



:arrow:


Top
Profile
Post subject: Re: Fender Pro Amp 1961 - thoughts?
Posted: Thu May 26, 2016 12:57 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
"67233" could be the Fender Part number.


Top
Profile
Post subject: Re: Fender Pro Amp 1961 - thoughts?
Posted: Thu May 26, 2016 1:32 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 14, 2013 4:41 pm
Posts: 764
Location: Sydney. Australia
Hmm .. found another Pro Amp 1960, with the same coding.



Top
Profile
Post subject: Re: Fender Pro Amp 1961 - thoughts?
Posted: Thu May 26, 2016 4:41 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Interestingly, the schematic for the Blonde Showman lists that PT. So, the PT should have plenty of headroom for the dual 6L6GC Pro.

If you decide to change the PT to 240VAC/50Hz, go with PT based on OEM this PT (67233). The 6L6GC 6G5 circuit runs higher plate voltages on the anode, than the 5881 6G5-A circuit (125P7A).

http://ampwares.com/schematics/showman_6g14.pdf


Top
Profile
Post subject: Re: Fender Pro Amp 1961 - thoughts?
Posted: Thu May 26, 2016 9:57 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 14, 2013 4:41 pm
Posts: 764
Location: Sydney. Australia
BMW2002Ti wrote:
"67233" could be the Fender Part number.



Indeed, this PT seems to be original to the amp.

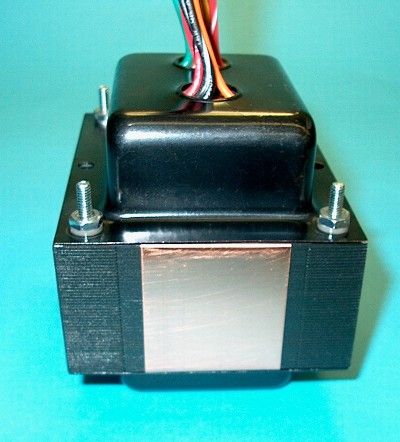

Steve, this is an upright model
http://store.triodestore.com/40-18094.html


The original is positioned differently.
Which model should I look for, for a drop-in replacement?

Maybe this one
http://www.classictone.net/40-18029.html


Top
Profile
Post subject: Re: Fender Pro Amp 1961 - thoughts?
Posted: Fri May 27, 2016 12:47 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Drop down into hole punched in chassis. Lammies sit horizontal, parallel to the chassis.


Top
Profile
Post subject: Re: Fender Pro Amp 1961 - thoughts?
Posted: Fri May 27, 2016 1:33 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 14, 2013 4:41 pm
Posts: 764
Location: Sydney. Australia
Aghh .. :mrgreen:



Top
Profile
Post subject: Re: Fender Pro Amp 1961 - thoughts?
Posted: Fri May 27, 2016 2:33 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
That PT looks correct. Layout-wise.


Top
Profile
Post subject: Re: Fender Pro Amp 1961 - thoughts?
Posted: Sun May 29, 2016 11:09 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sun Apr 14, 2013 4:41 pm
Posts: 764
Location: Sydney. Australia
BMW2002Ti wrote:




Steve, are you still running caps from 1962?


:D


Top
Profile
Post subject: Re: Fender Pro Amp 1961 - thoughts?
Posted: Mon May 30, 2016 7:25 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Nikola,

I replace them with Sprague ATOMS.
