Post subject: Re: 1967 BF vibro champ
Posted: Sun May 15, 2016 11:57 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

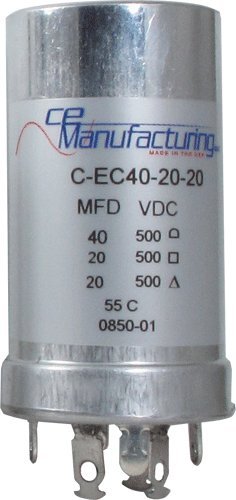

CE 40/20/20 at 500VDC photo with sections:

http://ecx.images-amazon.com/images/I/41hboNb%2B52L.jpg

So, to wire this cap can, you'd need to rotate it, as seen in this photo. So that the 40mfd section (upside down D) goes to proper wire.

Then, solder the middle wire to the far terminal square --- with can re-aligned.

Top wire goes to the triangle post.

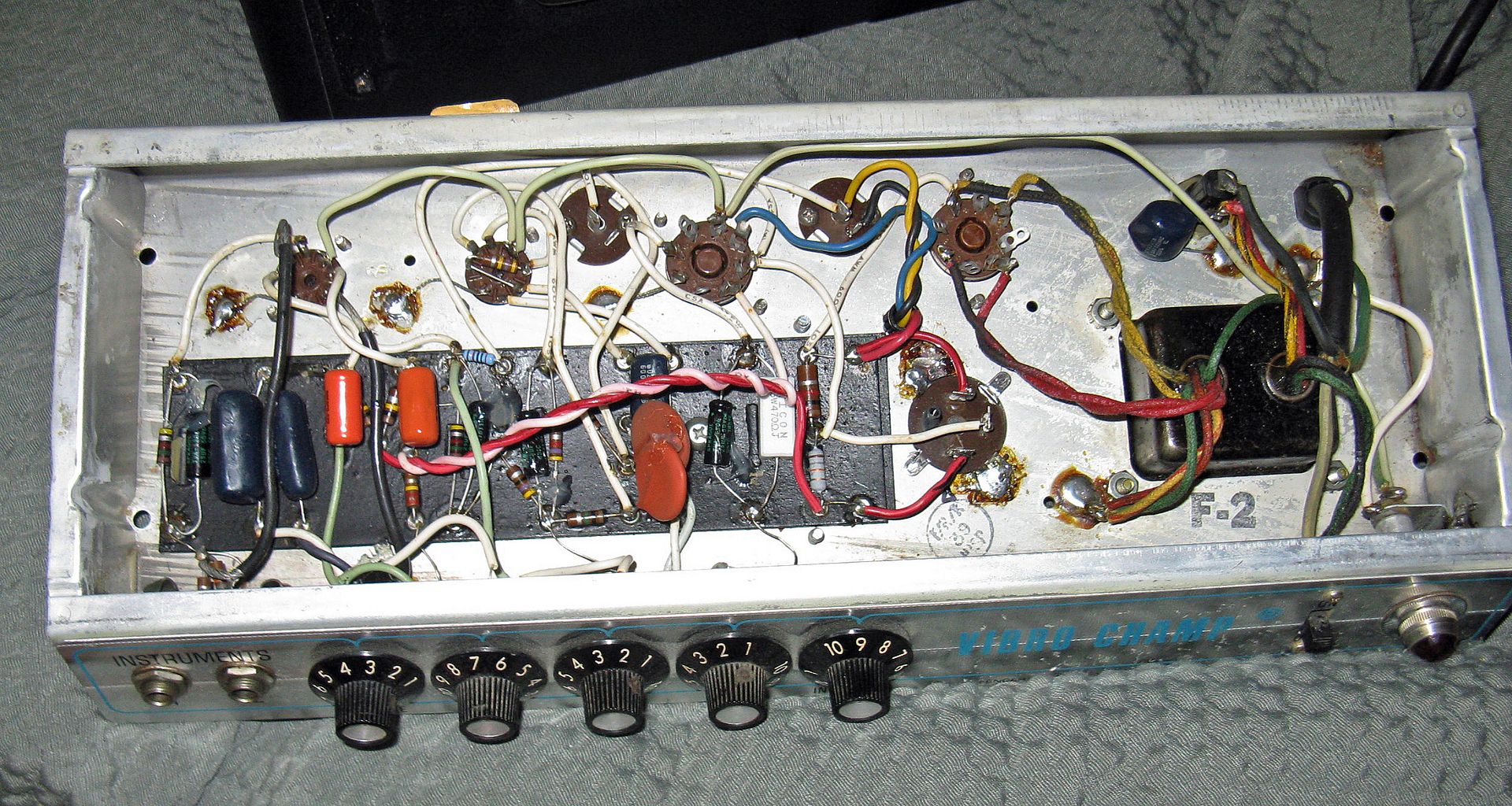

Like how this VC was wired:



Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: 1967 BF vibro champ
Posted: Sun May 15, 2016 12:29 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory
BMW2002Ti wrote:
BTW... Use a good 5Y3GT rectifier, ESP if you are going to put 40mfd on the first section. I recommend a nice US made NOS tube. They are still at good price.

http://www.ebay.com/sch/i.html?_odkw=5Y ... T&_sacat=0


Absolutely.

If only vintage GZ34's were similarly priced.

:wink:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 1967 BF vibro champ
Posted: Mon May 16, 2016 12:09 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Retroverbial wrote:

If only vintage GZ34's were similarly priced.

:wink:

Arjay


Yeah. Dunno why GZ34 are so darn $$$. Good US made 5U4GB are still relatively cheap.

As for the 5Y3GT... I really like consumer type GE black plate NOS 5Y3GT. There are great mil spec tubes, too. Slow-start GE 6087. Bendix 6106. Tungsol JAN-CTL 5Y3WGT.

RCA, Sylvania, Ken-Rad, Philco labeled, National Union are all great tubes.


Top
Profile
Post subject: Re: 1967 BF vibro champ
Posted: Mon May 16, 2016 12:48 pm
Offline
Professional Musician
Professional Musician

Joined: Wed Dec 15, 2010 7:06 am
Posts: 1662
Thanks for all the info. Here is what I will do, I ordered a capacitor - Multi-section, 40/20/20/20uF 525 VDC
and a tip for my old Weller 100/140 watt gun. I am going to use the 20/20/20 at first just to hear what Leo had intended, than after I get some good 5Y3GT rectifier tubes in my heard I will than try the 40uF on the first stage, not that the NOS RCA 5Y3 that came with is bad, it measured 122 out of 140 on my EICO 666 tube tester, but I just want some spares before I give it the 40uF just in case.
I also agree that these GZ34 are to darn expensive, I keep some of them for my SFSR
So now the wait for parts and time, the next two weeks are very busy at work with graduation coming at the end of this month.
mud


Top
Profile
Post subject: Re: 1967 BF vibro champ
Posted: Mon May 16, 2016 2:13 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Be interesting to see what you think about 20/20/20 versus 40/20/20. One other thing about the VC --- be sure the 470-ohm, 2 watt resistor off the 6V6GT cathode is within tolerance (5%). This resistor helps set the 6V6GT idle bias current.

As for the GZ34/5AR4, a very nice rectifier is the JAN Philips 5AR4 which was mis-labeled 5V4GA. These are 100% Sylvania-Philips ECG mil spec 5AR4 tubes. I have used many (more than 6) in GZ34 amps. They test as 5AR4, make B+ of 5AR4, internal construction of the 5AR4. At a very good price. This seller is a good guy, too.

US made Sylvania, GE, RCA 5AR4 are just as good as the Mullard.

Check construction of the EBay ad versus a Sylvania 5AR4 and the 5V4GA.

http://www.ebay.com/itm/5AR4-Rectifier- ... 1gCffNeLVg

http://3.bp.blogspot.com/_FiPeJotjqpw/T ... bottle.jpg

http://tctubes.com/images/products/deta ... IB_800.JPG


Top
Profile
Post subject: Re: 1967 BF vibro champ
Posted: Tue May 17, 2016 1:59 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory
BMW2002Ti wrote:
RCA, Sylvania, Ken-Rad, Philco labeled, National Union are all great tubes.


+1

And they seem to last forever.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 1967 BF vibro champ
Posted: Tue May 17, 2016 5:59 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
NOS GZ34's seemed to be hard to find until the last few months, I have bumped into bunches...two Mullards, a GE and two RCA's and all NOS! I was down to just one Bugle Boy and a Sovtek, so happy to have the stash restocked.

:mrgreen:

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: 1967 BF vibro champ
Posted: Tue May 17, 2016 7:15 pm
Offline
Professional Musician
Professional Musician

Joined: Wed Dec 15, 2010 7:06 am
Posts: 1662
T2Stratman wrote:
NOS GZ34's seemed to be hard to find until the last few months, I have bumped into bunches...two Mullards, a GE and two RCA's and all NOS! I was down to just one Bugle Boy and a Sovtek, so happy to have the stash restocked.

:mrgreen:

T2

Nice score lucky you :D
mud


Top
Profile
Post subject: Re: 1967 BF vibro champ
Posted: Wed May 18, 2016 7:28 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
T2Stratman wrote:
NOS GZ34's seemed to be hard to find until the last few months, I have bumped into bunches...two Mullards, a GE and two RCA's and all NOS! I was down to just one Bugle Boy and a Sovtek, so happy to have the stash restocked.

:mrgreen:

T2


Good thing is that one good GZ34/5AR4 will prolly last another 5 years of heavy use. And 10-25 years of moderate use. Provided the PSU caps are healthy.

:D


Top
Profile
Post subject: Re: 1967 BF vibro champ
Posted: Wed May 18, 2016 10:49 am
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
BMW2002Ti wrote:
T2Stratman wrote:
NOS GZ34's seemed to be hard to find until the last few months, I have bumped into bunches...two Mullards, a GE and two RCA's and all NOS! I was down to just one Bugle Boy and a Sovtek, so happy to have the stash restocked.

:mrgreen:

T2


Good thing is that one good GZ34/5AR4 will prolly last another 5 years of heavy use. And 10-25 years of moderate use. Provided the PSU caps are healthy.

:D


Luckily, every one of my amps has been serviced within the past year or two, so I am betting those F&T's will hold up pretty well!

T2

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: 1967 BF vibro champ
Posted: Wed May 18, 2016 11:56 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26415
Location: Tombstone Territory
I would expect no less than fifteen years of reliable service from F&T electrolytics regardless of the severity of usage.

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: 1966 vibro champ
Posted: Wed May 18, 2016 11:26 pm
Offline
Hobbyist
Hobbyist
User avatar

Joined: Thu Feb 18, 2016 2:26 am
Posts: 25
mud wrote:
So I picked it up last night before they closed, got home late so I did not have time to go under the hood, and because of that I did not want to play it until I look at its electrolytic capacitor, they could be just about 50 years old.




Umm...mud.....Are those Telefunken 12AX7s? Looks like one is that and the other is marked ECC803S. Correct?

If so, those are "holy grail tubes" (at least in Europe) and they tend to go for about 100 USD each, maybe more depending on condition.

_________________
Which is the best guitar in the world?
-"The one you're holding."


Top
Profile
Post subject: Re: 1967 BF vibro champ
Posted: Thu May 19, 2016 7:23 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Both are TFK ECC83/12AX7 tubes. The ECC803S is a frame-grid tube. Note the boxy, small anode plates in photo. Most I've seen are gold plated pins. Though, some have used steel pin variety.


https://www.tubeworld.com/ecc803s.htm


Top
Profile
Post subject: Re: 1966 vibro champ
Posted: Thu May 19, 2016 11:21 am
Offline
Professional Musician
Professional Musician

Joined: Wed Dec 15, 2010 7:06 am
Posts: 1662
jensljungkvist wrote:
mud wrote:
So I picked it up last night before they closed, got home late so I did not have time to go under the hood, and because of that I did not want to play it until I look at its electrolytic capacitor, they could be just about 50 years old.




Umm...mud.....Are those Telefunken 12AX7s? Looks like one is that and the other is marked ECC803S. Correct?

If so, those are "holy grail tubes" (at least in Europe) and they tend to go for about 100 USD each, maybe more depending on condition.

Quote:
Both are TFK ECC83/12AX7 tubes. The ECC803S is a frame-grid tube. Note the boxy, small anode plates in photo. Most I've seen are gold plated pins. Though, some have used steel pin variety.


https://www.tubeworld.com/ecc803s.htm

Yep definitely Telefunken, haven't pulled them yet, but I will tomorrow and I will look to see what pins are there. I did pull the RCA's and the 6V6 tested off the chart and the 5Y3GT rectifier was 122 out of 140. If all goes right the cap can I ordered should be here tomorrow, and I hope to sit down with the amp this weekend and bring it back online
mud


Top
Profile
Post subject: Re: 1967 BF vibro champ
Posted: Thu May 19, 2016 3:20 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Sat Aug 01, 2015 12:32 pm
Posts: 339
Location: Las Vegas
I'm always amazed by how well you guys know these circuits and components, it's really very impressive.
