Post subject: Bias cap and diode question. These look like the wrong size.
Posted: Sat Mar 26, 2016 10:33 pm
Offline
Hobbyist
Hobbyist

Joined: Fri Feb 19, 2016 9:56 am
Posts: 28
AB763 Showman rebuild in progress.
I had to completely rebuild the bias/rectifier board but the caps I ordered from Antique Electronics seem like the wrong size. The bias cap is supposed to be a 25uF/50v but the one they sent me is tiny. The one I'm pulling out is 5x as big.
This cant be right can it?
What is it I need to order?

Secondary question.
I also ordered this cap "set" which is supposed to be the filter caps and bypass caps. The bypass caps look small too. Granted I know you double them up but just making sure this is right also...

Heck, while I'm at I should also double check these diodes I got are proper replacements too.
1N5408 for the rectifier and 1N4007 for the bias.

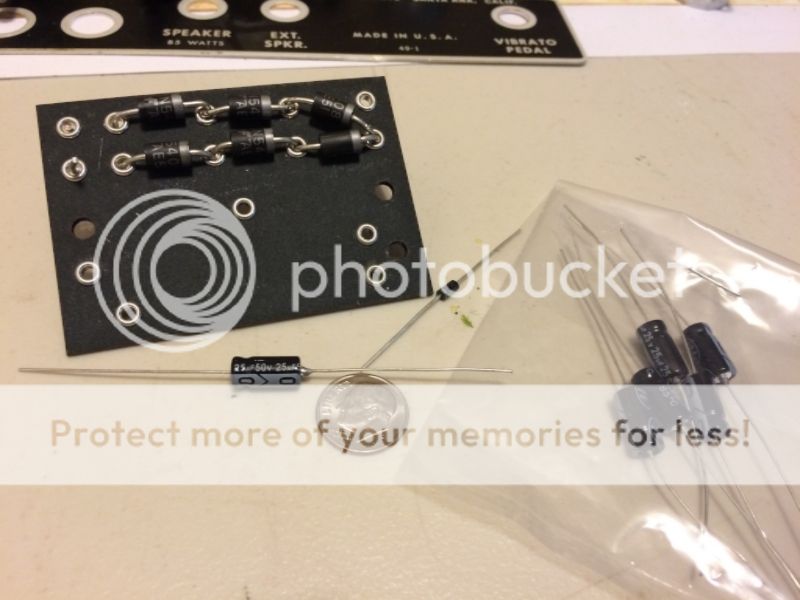

here's a photo of the caps I ordered and the rectifier board partially populated before I realized the cap is the wrong size.
The main cap in question is the little one next to the dime.



Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Bias cap and diode question. These look like the wrong s
Posted: Sun Mar 27, 2016 12:29 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
That is proper OEM values. New cap technology allows for much smaller dimensions, for same mfd/VDC caps. However, as a side note, I like to run slightly higher mfd/VDC rated caps in the bias circuit. Bit better filtering and life. Something like 50-100mfd/100VDC.

If you are going to run two 25/50 caps, think you'll be ok.


Top
Profile
Post subject: Re: Bias cap and diode question. These look like the wrong s
Posted: Sun Mar 27, 2016 2:51 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14047
Location: Province de Québec, Canada
BMW2002Ti wrote:
That is proper OEM values. New cap technology allows for much smaller dimensions, for same mfd/VDC caps. However, as a side note, I like to run slightly higher mfd/VDC rated caps in the bias circuit. Bit better filtering and life. Something like 50-100mfd/100VDC.

If you are going to run two 25/50 caps, think you'll be ok.


+1

oKoors,

Wy did you buy cheap bypass caps, your amp need good quality parts if you want to have the better tone and keep value. :(
Good parts is not very expensive and it is same labour time.

You ask about that on another post and we give you good answer, why don't you listen us ? Why another post same amp ?
viewtopic.php?f=12&t=100819


Sprague , Mallory or F & T caps only.


Top
Profile
Post subject: Re: Bias cap and diode question. These look like the wrong s
Posted: Sun Mar 27, 2016 5:58 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
One last thing...


The bias circuit supplies negative DC to the tube grids. The filter caps should be solder in, with (+) end to the chassis.

:mrgreen:


Top
Profile
Post subject: Re: Bias cap and diode question. These look like the wrong s
Posted: Mon Mar 28, 2016 12:42 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Fri Feb 05, 2010 4:31 am
Posts: 14047
Location: Province de Québec, Canada
BMW2002Ti wrote:
One last thing...



The bias circuit supplies negative DC to the tube grids. The filter caps should be solder in, with (+) end to the chassis.

:mrgreen:


+1000


Top
Profile
Post subject: Re: Bias cap and diode question. These look like the wrong s
Posted: Mon Mar 28, 2016 9:58 am
Offline
Hobbyist
Hobbyist

Joined: Fri Feb 19, 2016 9:56 am
Posts: 28
stratele52 wrote:

+1

oKoors,

Wy did you buy cheap bypass caps, your amp need good quality parts if you want to have the better tone and keep value. :(
Good parts is not very expensive and it is same labour time.

You ask about that on another post and we give you good answer, why don't you listen us ? Why another post same amp ?
viewtopic.php?f=12&t=100819


Sprague , Mallory or F & T caps only.



I though I was buying good parts. In that other post I originally asked about the Sprague Atoms but the consensus was that F&T was just as good and cheaper. Those caps I pictured came in the "cap set for Showman AB763" which I linked in the first message. They are F&T filter caps and the rest are whatever they gave me.
I'm a bit bummed, because I agree, I'll spend the money to get the best components for this amp. But also I don't have the experience to know what the good components are or what to order specifically.

Not trying to frustrate anybody. Had I not posted this question I would not have known, so thank you :(

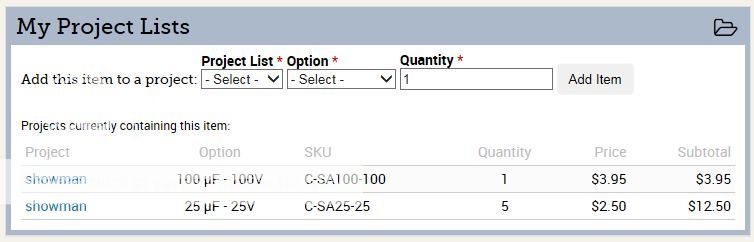

I guess the better question to ask is, if I were to reorder caps (which I'll do now) are these the recommended values and quality:

These are Sprague Atoms, 100uF/100V bias cap (x1) and 25uF/25V bypass caps (x5)
Filter caps are F&T and already purchased.

PS, sorry for clogging the forum w/ redundant questions. I appreciate the help.

BMW2002Ti wrote:
One last thing...


The bias circuit supplies negative DC to the tube grids. The filter caps should be solder in, with (+) end to the chassis.

:mrgreen:


Understood.
The cap in the photo was laying there so the values could be read, not how I was going to solder it in :mrgreen:

New/better/higher value caps in the shopping basket anyway.


Top
Profile
Post subject: Re: Bias cap and diode question. These look like the wrong s
Posted: Mon Mar 28, 2016 4:12 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
oKoors, those 25/50 caps appear to be IC caps (Illinois Caps). Despite the name, most consumer level IC caps are made in China, these days. They are mid-level caps. Personally, I wouldn't use them in any critical stage of the amp. And yes, the bias supply is considered critical.

If I were you --- get a pair of F&T 33mfd/160VDC caps. The extra voltage rating will help with resistance to breakdown due to heat. Last a lot longer than those IC caps. IMHO.

https://www.tubesandmore.com/products/C-ET33-160-FT

Or you can use one F&T 100mfd/100VDC, in place of the two OEM 25/50 caps.

https://www.tubesandmore.com/products/C-ET100-100-FT


Top
Profile
Post subject: Re: Bias cap and diode question. These look like the wrong s
Posted: Mon Mar 28, 2016 4:19 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Here's a photo of a AB165 Bassman rectifier board I redid. I replaced the two OEM 25/50 cap with one 100/100.
