Post subject: Re: Tweed Champ
Posted: Wed Mar 09, 2016 6:11 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Just got amp. Maybe, ramp it up later tonight.

:)




Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Tweed Champ
Posted: Thu Mar 10, 2016 4:08 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Mon Jul 16, 2007 8:11 pm
Posts: 558
Very nice looking Champ!


Top
Profile
Post subject: Re: Tweed Champ
Posted: Thu Mar 10, 2016 7:20 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
More photos. Prolly won't get around to trying this amp out, until after weekend. Gotta work. :(






Top
Profile
Post subject: Re: Tweed Champ
Posted: Thu Mar 10, 2016 8:53 am
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26416
Location: Tombstone Territory
Seems to be totally unmolested.

Nice score!

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Tweed Champ
Posted: Thu Mar 10, 2016 6:50 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Tue Mar 01, 2011 3:10 pm
Posts: 5646
Location: Gateway to the West
Congrats again...still waiting on that family portrait...just sayin...

:mrgreen:

T2

_________________
-----------------------------------------------------------
What time is it? It's Fender Time.


Top
Profile
Post subject: Re: Tweed Champ
Posted: Thu Mar 10, 2016 8:51 pm
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Thu Feb 19, 2009 8:33 pm
Posts: 457
Location: Bushnell, FL
Says on the sticker "5E3". :lol:
Nice score!

_________________
Charlie P 5E3 Build 6-14
2x12 cab Build 16, 5e3 Built 3-4-16
6G3 Head Build 3,3,18
Fend HSS Am DLX Strat 08
Fend MIM Telebot Dlx 11 Tronical Tuner
Fend SupSonic 60 2010
Gibson Robot 08, Gib. Faded Ch LP 07
Gret. G5420 16, Peavey VK112 08,


Top
Profile
Post subject: Re: Tweed Champ
Posted: Thu Mar 10, 2016 11:50 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
T2Stratman wrote:
Congrats again...still waiting on that family portrait...just sayin...

:mrgreen:

T2


Let me get this puppy cooking. Promise a Happy Champ Family portrait. Some day.

:lol:


Top
Profile
Post subject: Re: Tweed Champ
Posted: Fri Mar 11, 2016 3:46 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Mon Jul 16, 2007 8:11 pm
Posts: 558
I'm not surprised Leo used a 5E3 chart when they ran out of the correct ones, but wonder why they would not cross off one 6V6GT and the 12AY7 with a pen, supplying incorrect info could confuse customers, and makes the chart kind of pointless?


Top
Profile
Post subject: Re: Tweed Champ
Posted: Tue Mar 15, 2016 11:49 am
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
OK... broke into amp circuit. Owner complained about "on-off" character of volume control. Ended up someone in the past replaced the original. And forgot to ground third leg.

Notice, this is a 5F1 circuit. Not the usual 5E1, for 1955. Has no choke in the PSU. Two resistors. A 16mfd frist stage cap. Not the 5E1 circuit's 8 mfd.


Before:

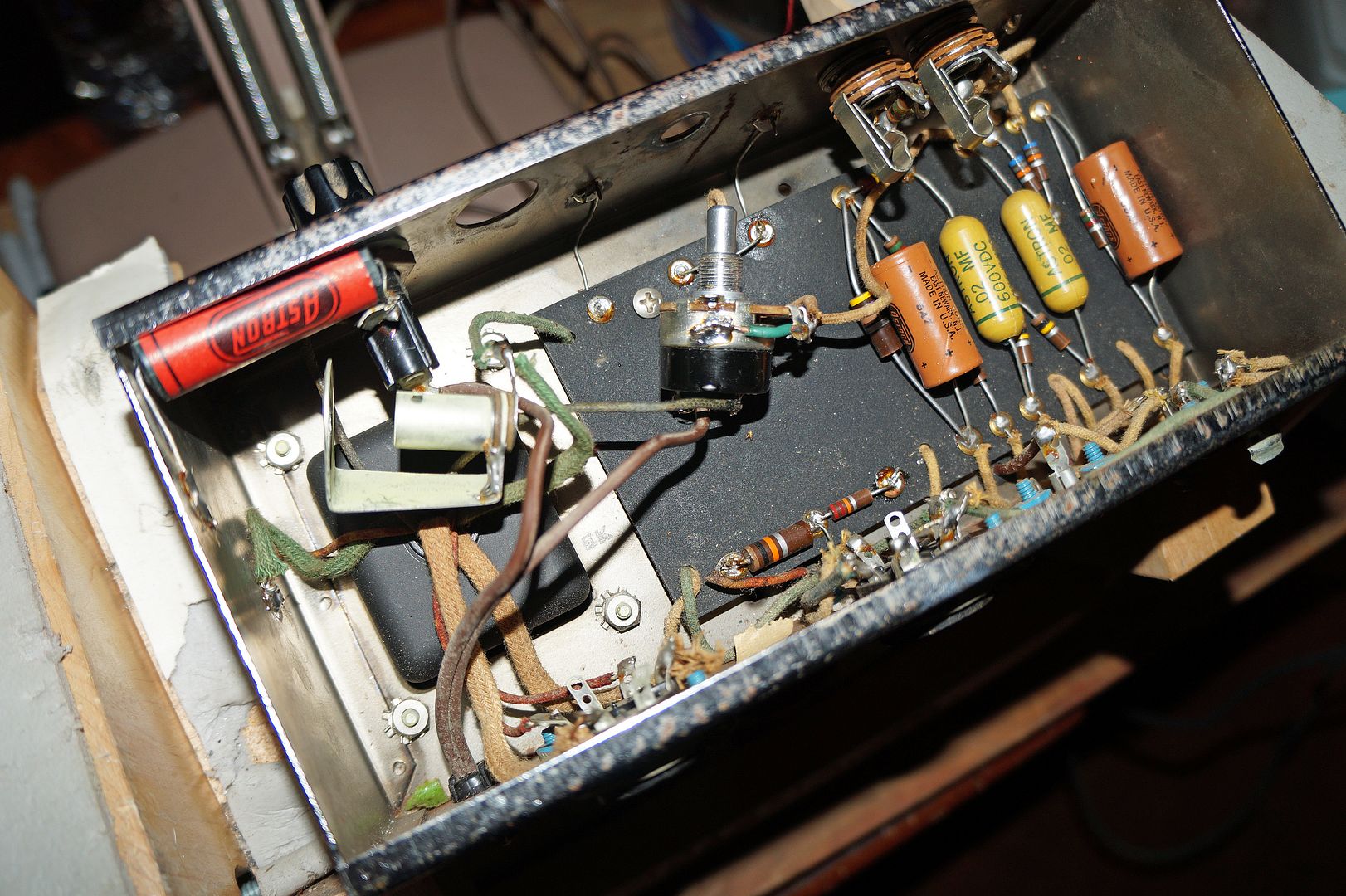

After, with third leg grounded:


I was going to stuff new caps into old Astron paper housing, but sizes are too far off and the paper is crumbly. :(


Kinda feel odd, undoing Lupe's original solders. I feel like I should go to Confessional, or something.

:lol:


Top
Profile
Post subject: Re: Tweed Champ
Posted: Tue Mar 15, 2016 1:48 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26416
Location: Tombstone Territory
BMW2002Ti wrote:
Kinda feel odd, undoing Lupe's original solders. I feel like I should go to Confessional, or something.


I felt the same angst when I changed out the original filter array in my '64 Pro Amp. I'm certain that St. Leo was not pleased.

:wink:

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Tweed Champ
Posted: Tue Mar 15, 2016 2:21 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544

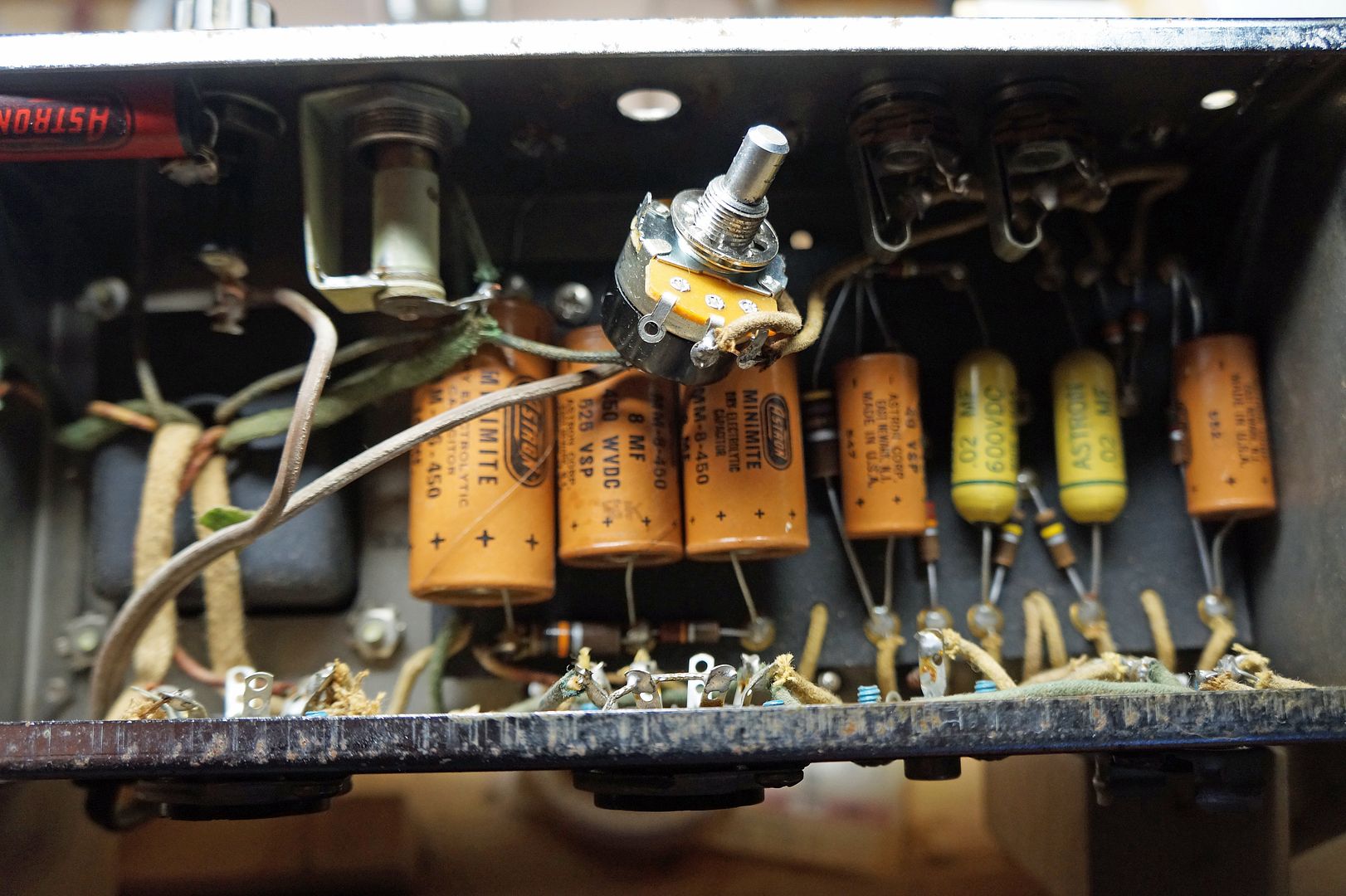

I really thought hard about re-doing this amp or keeping it OEM. I decided to make it as reliable a daily player as possible. Photos of cap change-outs. I went to F&T 8+8 mfd/450 VDC. See how good they are.



Top
Profile
Post subject: Re: Tweed Champ
Posted: Tue Mar 15, 2016 3:55 pm
Offline
Rock Icon
Rock Icon
User avatar

Joined: Wed Mar 31, 2010 12:48 am
Posts: 26416
Location: Tombstone Territory
Are you leaving that OEM Astron death cap in situ?

Arjay

_________________
"Here's why reliability is job one: A great sounding amp that breaks down goes from being a favorite piece of gear to a useless piece of crap in less time than it takes to read this sentence." -- BRUCE ZINKY


Top
Profile
Post subject: Re: Tweed Champ
Posted: Tue Mar 15, 2016 5:36 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Arjay, for the life of me I can't figure out how the "death cap" is working in this amp. There is no ground switch (to change polarity of the AC line). I was trying to Google some reason for this setup.

Just going to remove it.

http://ampwares.com/schematics/champ_5f1.pdf


Top
Profile
Post subject: Re: Tweed Champ
Posted: Tue Mar 15, 2016 6:11 pm
Offline
Rock Star
Rock Star
User avatar

Joined: Sat Jul 03, 2010 2:18 pm
Posts: 6544
Lytics replaced. Changed cathode-tied resistor on 6V6GT to Mill wire-wound. And resistors in PSU rail and grid-to-ground were within 10% of nominal. Reflowed the old solder. Running about 355-358VDC on B+. 15-18 VDC above 1955 nominal standards. Seems quiet from 1 to 12. See out it sounds like.


Played it. Sounded weak and thin. I don't think the tube in amp is a 12AX7. Looks more like 12AY7. Anyhow, replaced it with an RCA 7025. 5Y3WGT rectifier. And Tungsol (USA) 6V6GT. Much better tone. Rich. At volumes above 7 --- or heavy bass runs... speaker breaks up badly. May have weak VC. Or cone is too brittle. Will look around for a 6-inch to replace OEM one. Bag the OEM and the old caps & resistor.



Top
Profile
Post subject: Re: Tweed Champ
Posted: Thu Mar 17, 2016 6:57 am
Offline
Aspiring Musician
Aspiring Musician
User avatar

Joined: Mon Jul 16, 2007 8:11 pm
Posts: 558
Too bad the paper housing would not fit the new caps. What speaker do you plan to try? does Kendrick make a 6 inch? I really love the black frame 8 in my 76' champ.
