Post subject: Looking for info / help on Squire I just bought
Posted: Fri Mar 05, 2010 6:17 am
Offline
Hobbyist
Hobbyist

Joined: Fri Mar 05, 2010 5:46 am
Posts: 3
I just purchased a Squire Jazz SN E926114 that has a problem with the tone control. (As an explanation I repair stereo's both tube and transistor as a hobby.) Anyway there was a loose ground lead near the tone pot and a spot on the pot case where something had been soldered but was gone. The tone circuit would come and go sometimes bright and full (nice sound) and sometimes flat. I cleaned the pot with de-oxit and soldered the ground to the case and it is basically flat all the time now. The tone control knob does nothing but each pick-up volume works fine.

Now the questions can some one put a date on this by using the SN?

What would the next step be on fixing the tone circuit?



(I will be AFK till 3/8/10) Thanks, Bob


Top
Profile
Fender Play Winter Sale 2020
Post subject: Re: Looking for info / help on Squire I just bought
Posted: Fri Mar 05, 2010 12:22 pm
Offline
Professional Musician
Professional Musician
User avatar

Joined: Thu Jun 21, 2007 11:42 am
Posts: 1053
Location: Minnesota, USA
DrOlds wrote:
Now the questions can some one put a date on this by using the SN?


Fender has a handy serial number dater page here in this site. http://www.fender.com/support/usa_instruments.php

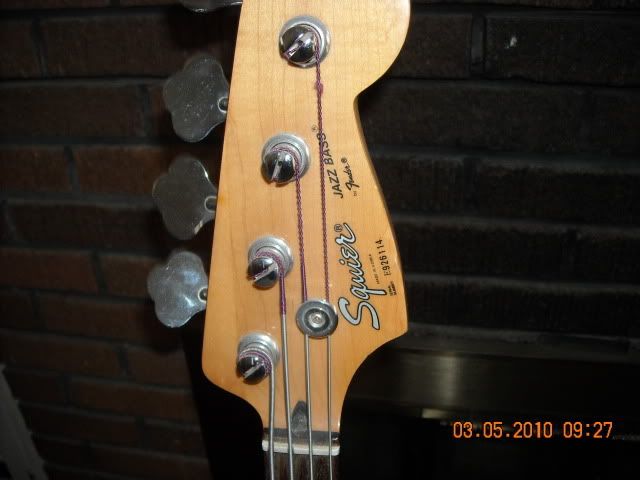

The "made in...." on your headstock is too small in the pic. Is it Japan? Then click on the link for Japan serial numbers.
Or you could take the neck off and check for a date at the heel of the neck to get a more accruate date.

DrOlds wrote:
What would the next step be on fixing the tone circuit?


Fender also has wiring diagrams. This one should be close. http://www.fender.com/support/diagrams/ ... 00BPg2.pdf How does it compare to yours?

_________________
Obligatory gear list: Fender, Rickenbacker, Gibson, Gretsch, Vox, Martin, and more Fender.


Top
Profile
Post subject: sure of one thing(maybe)
Posted: Thu Mar 11, 2010 10:44 pm
Offline
Hobbyist
Hobbyist

Joined: Thu Feb 25, 2010 11:06 pm
Posts: 37
Your bass is a eighty-nine(89) made in Korea jazz bass,sometimes you may see a VN/ prefix on this models serial number which would describe sort of a low grade vintage re-issue designed bass from korea .
the tone issue sounds like if it was not soldered when you bought it could be because it was purposfully disconnected because of a bad tone pot,which would make it not work at all now that you re-connected it.
I would break the bank and buy a new pot(5.00$)it cant hurt and it should fix it right up .! :lol:


Top
Profile
Post subject:
Posted: Fri Mar 12, 2010 8:20 am
Offline
Hobbyist
Hobbyist

Joined: Fri Mar 05, 2010 5:46 am
Posts: 3
I want to fix it correctly I just didn't know which way to go, I suspected a "dead spot" in the pot and after cleaning it just went open but I was unsure it that would have caused no output from bass or just no tone control. I have also been considering new pick-ups as long as it would make this bass better sounding. I play through either a Peavey (transistorized) 370 watt head & 2 x 15 cab & 2 x 10 cab or in more intimate (accompany a acoustic guitar player) a 15 watt x 1 x 10 combo I built with a Bell 2122 amp.

What about these at www.tubesandmore.com?

P-PUF65

Catalog
Page 102

PICKUP, FENDER JAZZ BASS, 1 BRIDGE, 1 NECK

Jazz Bass Neck and Bridge
$103.95
Qty

I also can't locate the proper tone pot on their list so any help would be appreciated. Thanks, Doc


Top
Profile
Post subject:
Posted: Tue Mar 30, 2010 8:33 am
Offline
Professional Musician
Professional Musician
User avatar

Joined: Fri Mar 21, 2008 11:00 am
Posts: 1226
Location: In the pocket north of Washington D.C.
The tone pot is a 250k pot just as both volume controls are.

It would probably help the bass to replace all of the pots, esp. if one has gone bad the others may soon follow.

There are many Jazz bass wiring diagrams available on the internet and if you buy new pickups, the manufacturer of the pickup should include a diagram to install them.

Try to get original carbon trace CTS pots made in the USA and get the set screw knobs to replace the knobs that came on your Squire bass.

YOu can also install a new capacitor on the tone pot for imporved tone performance.

Good luck with it.

_________________
If thine enemy wrong thee, buy each of his children a drum.
